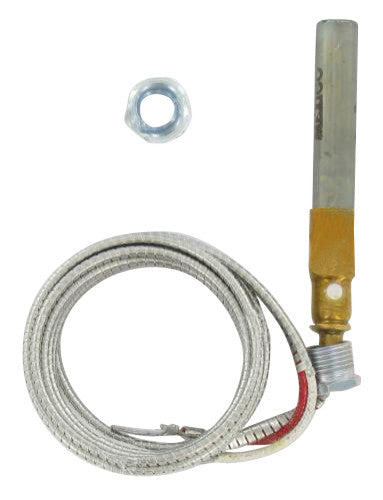

Honeywell Q313A1055 Replace 750 mV Thermopile Generator

Honeywell model Q313A1055 750Mv Replacement Thermopile Generator. 47 inch Leads With 1/2 Inch -27 Split Nut. Also called powerpile generator for millivolt systems.

• Contains multiple thermocouples connected in series to increase the millivoltage output.
• Push-in clip, split nut, and adapter assembly for easy pilot burner installation.
• Spade or quick-connect terminals available for millivolt gas control connections.
• Male nut connector for Pilotstat safety control power units.
• Available in a variety of lead lengths.

Product Specifications

Application

Thermopile

Includes

Attaching nut

Used With

Q314, Q324, Q327, Q377, Q379, Q382 Pilot Burners

Item Type

Product

Temperature Ratings (C)

Hot Junction--760 C; Cold Junction--416 C

Temperature Ratings (F)

Hot Junction--1400 F; Cold Junction--780 F

Voltage

750 mV; Open circuit output--600 mV to 750 mV

Connection Type

Spade Terminals

Resistance

2.90 ohms

Length (in.)

47 in.

Length (mm)

1194 mm
