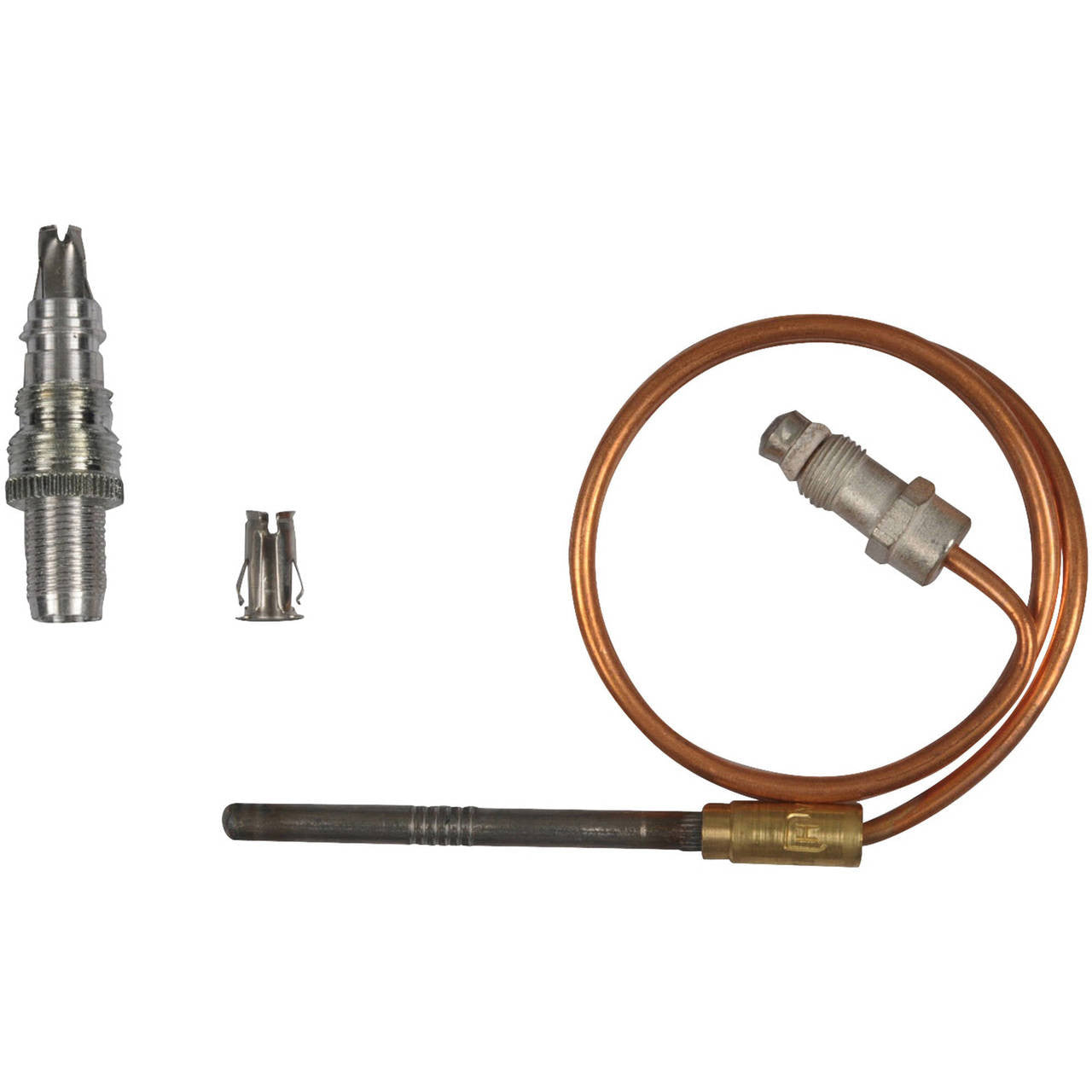

Honeywell Q340A1074 Thermocouple 24 Inch
Honeywell Q340A1074 Thermocouple 24 Inch
No reviews
Regular price
$9.75 USD
Regular price
Sale price
$9.75 USD
Unit price
/
per
Honeywell Q340A1074 Thermocouple 24 Inch
Honeywell - 24" thermocouple, 30 mV, with 11/32-32 male connector. The Q340A1074/U senses the pilot flame on gas-fired heating systems. The pilot flame heats the tip of the thermocouple, producing a temperature differential between it and the base to generate a small amount of DC power, measured in millivolts. It features a push-in clip, split nut, and adapter assembly for easy pilot burner installation. Spade or quick-connect terminals available for millivolt gas control connections. Male nut connector for Pilotstat safety control power units.
Features
- Push-in clip, split nut, or adapter assembly available (depending on model) for easy pilot burner installation.
- Male nut connector for Pilotstat safety control power units.
- Available in a variety of lead lengths.
Product Specifications
- Application
- Thermocouple for Standing Pilot Applications
- Includes
- Adapter and Push In Clip
- Tradeline Value
- Universal
- Temperature Ratings (C)
- Hot Junction--760 C; Cold Junction--416 C
- Temperature Ratings (F)
- Hot Junction--1400 F; Cold Junction--780 F
- Voltage
- 30 mV; Open circuit output--26 mV to 32 mV
- Connection Type
- 11/32 32 Male Connector Nut
- Resistance
- 0.02 ohms
- Length (in.)
- 24 in.
- Length (mm)
- 610 mm
