Honeywell R8184M1051 Relay Oil Burner Control 45 Sec

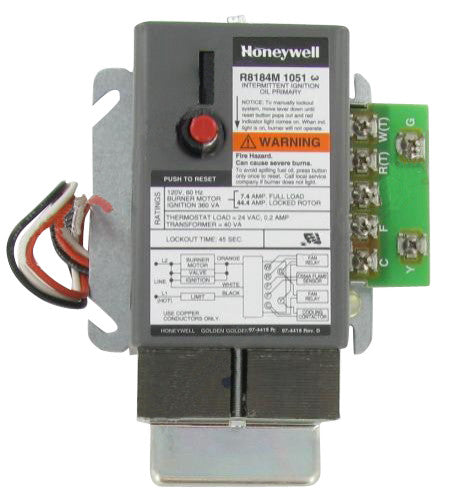

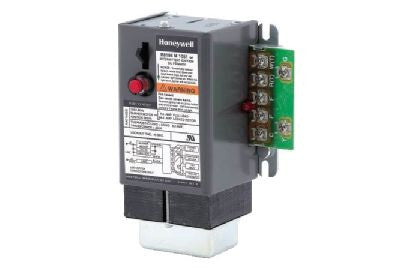

Honeywell model R8184M1051 cad cell relay. Burner Mounted on 4X4 junction box. Line Voltage Lead- Wire Connections & Low Volt screw terminal board. 45 Second Safety timing. 120 volt 60 Hz. Intermittent Ignition. 40 Va Transformer For supplying 24 volts to Heating or Cooling devices. 0.2A Thermostat Current. Tradeline model.

• Provides automatic, nonrecycling control of an intermittent ignition oil burner system.
• Solid state flame sensing circuit.
• External button to manually reset safety switch after lockout. Includes 40 VA transformer
• Mounts on standard 4 x 4 in. junction box.
• Includes 40 VA transformer and Y and G terminals for connection of cooling equipment.

Product Specifications

Dimensions (in.)

4 3/8 in. high x 4 1/8 in. wide x 2 1/2 in. deep

Dimensions (mm)

111 mm high x 104 mm wide x 64 mm deep

Temperature Range (F)

-40 F to +130 F

Temperature Range (C)

-40 C to +54 C

Item Type

Product

Mounting

Mounts on standard 4 x 4 in. junction box

Approvals, Underwriters Laboratories Inc.

UL Component Recognized; File no. MP268, guide no. MCCZ2

Tradeline Value

Tradeline

Ignition Type

Intermittent

Timing, Safety Switch

45 sec.

Electrical Ratings, Contacts (full load)

7.4 A @ 120 Vac; 3.7 a @ 240 Vac

Electrical Ratings, Contacts (locked rotor)

44.4 A @ 120 Vac; 22.2 A @ 240 Vac
