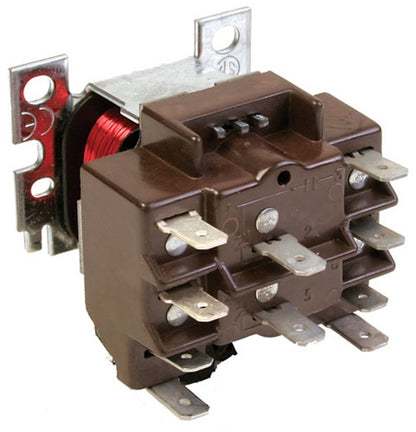

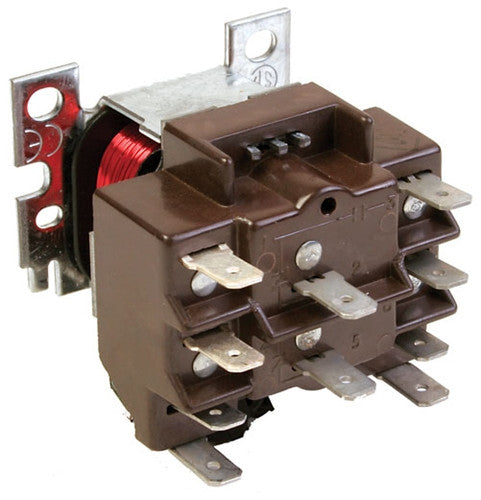

Honeywell R8222D1014 General Purpose Switching Relay

General purpose switching for refrigeration and air conditioning equipment, appliances, vending machines and similar applications.

Features

• Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation.
• Untaped coil assures cooler operation.
• Laminated magnet construction for higher efficiency.
• Base designed for easy replacement of competitive relays.
• Double quick-connect coil terminals.
• Plug compatible with Steveco 90-340 and Mars 90340.

Product Specifications

Description: 24 V General Purpose Relay with Dpdt switching

Coil Ratings Voltage: 24 Vac

Switching: DPDT

Electrical Connections (main):18 in. (457 mm)

Electrical Ratings, Contacts (full load): 3 A @ 480 Vac; 6 A @ 208 Vac, 240 Vac, 277 Vac; 12 A @ 120 Vac

Electrical Ratings, Contacts (locked rotor): 18 A @ 480 Vac; 35 A @ 208 Vac, 240 Vac, 277 Vac, 60 A @ 120 Vac

Electrical Ratings, Contacts (resistive): 10 A @ 480 Vac; 20.8 A @ 120 Vac, 208 Vac, 240 Vac, 277 Vac

Pilot Duty Ratings: Minimum: 3 VA @ 24 Vac, 120 Vac, & 480 Vac; Maximum: 25 VA @ 24 Vac, 125 VA @ 120 Vac,(more...)
