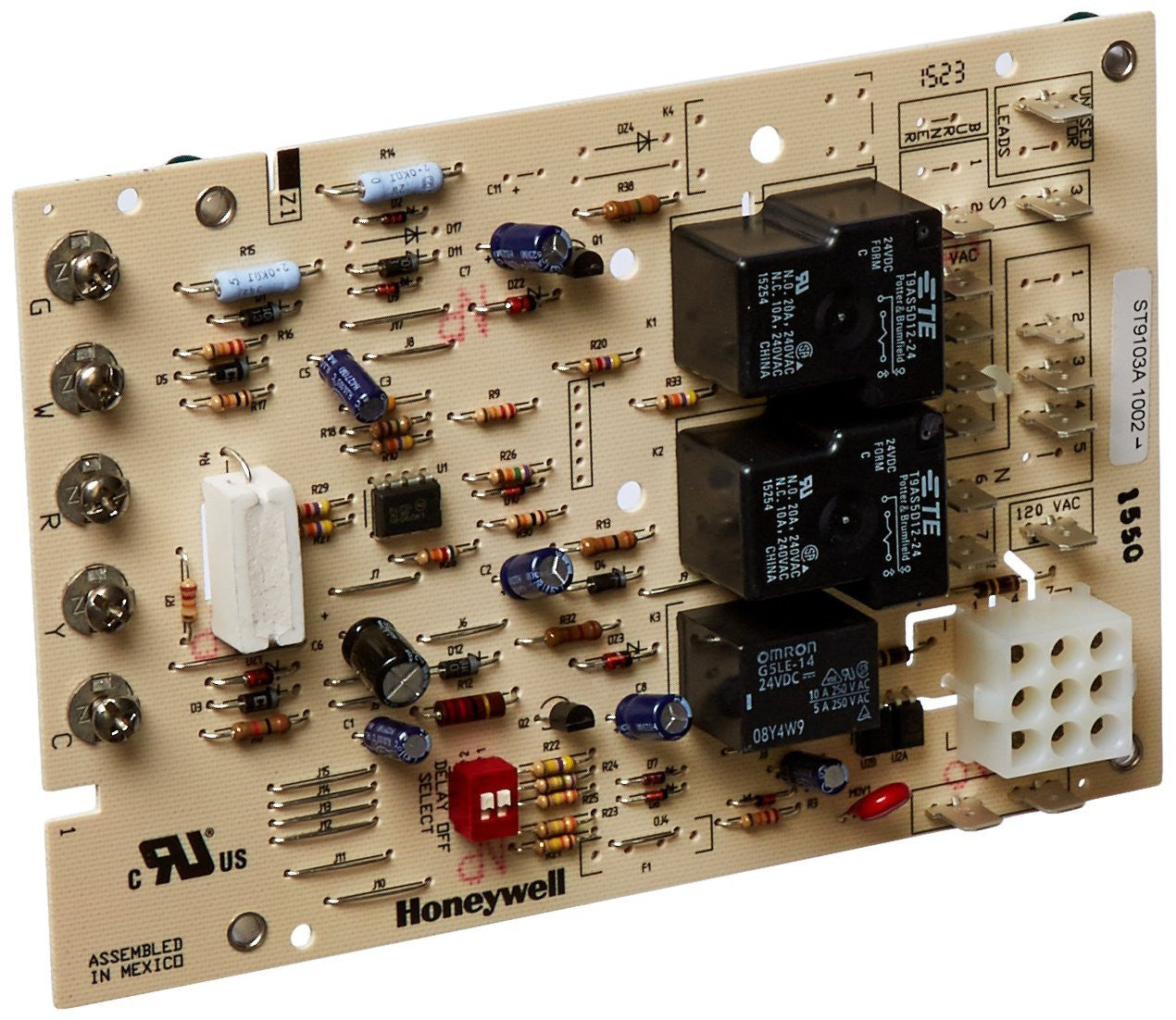

Honeywell ST9103A1002 Fan Control Circuit Board

Honeywell model ST9103A1002 Integrated Oil Furnace Control. Integrated Control Of Burner & Circulating Fan Operations In Oil Furnace. 30 Sec Heat Fan On Delay. 60, 90, 120 or 150 Sec Heat Fan Off Delay. Constant Fan electronic air cleaner / humidifier terminals.

• ST9103A integrates control of burner and circulating fan operations in an oil furnace.
• Central appliance wiring point simplifies appliance assembly and service.
• Fixed or field-adjustable heat fan on delay; field adjustable heat fan off delay.

Replaces Carrier PDP 20123102. Honeywell fan timer, typical use is oil furnaces. Heat Fan On Delay fixed, 45 sec Heat Fan Off Delay adj. 60, 90, 120, 150 (set at 150 sec) Electrical Ratings (Vac) 18 to 30 Vac Frequency (Hz) 50/60 Hz Cool Fan On Delay fixed 0 sec Cool Fan Off Delay fixed 0 sec Approvals, Underwriters Laboratories, Inc. UL Component Listed Approvals, Canadian Standards Association CSA Listed Application
