.Replaces Old Honeywell Board #s: ST9101A1006, ST9101A1014, ST9101A1022, ST9120A1006, ST9120A2004, ST9120B1005, ST9120C1012, ST9120C1020, ST9120C2002, ST9120C2010, ST9120C2028, ST9120C3000, ST9120C3018, ST9120C4008, ST9120C4016, ST9120C4040, ST9120C4057, ST9120C5005, ST9120C5013, ST9120D3009, ST9120G2008, ST9120G2016, ST9120D2024, ST9120G2032, ST9120G4004, ST9120G4012, ST9120G4038, ST9120U1003, ST9141A1002, ST9141A1028, ST9141B1001, ST9150A1003, ST9150B2000, ST9150B2018, ST9150B2026, ST9150B2034, ST9160A1002, ST9160B1001, ST9160B1019, ST9160B1027, ST9160B1035, ST9160B1043, ST9160B1050, ST9160B1068, ST9160B1076, ST9160B1084, ST9160C1000, ST9160C1018
| Features |
Central appliance wiring point simplifies appliance assembly and service.
Fixed or field-adjustable heat fan on delay; field adjustable heat fan off delay.
|
| Product Specifications |
|
|
| Description |

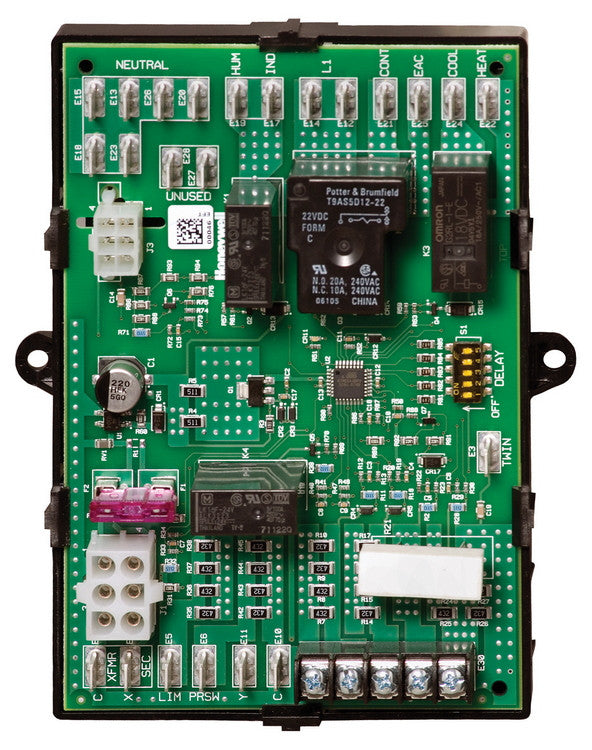

Universal Electronic Fan Timer with adjustable heat fan on, heat fan off, cool fan on, and cool fan off |
| Application |
Integrates control of combustion blower and circulating fan operations for a gas warm air appliance |
| Electrical Ratings |
18 to 30 Vac |
| Heat Fan On Delay |
adj. 30, 60 sec (set at 30 sec) |
| Heat Fan Off Delay |
adj. 60, 120, 150, 180 sec (set at 120 sec) |
| Cool Fan On Delay |
adj. 4, 30 sec (set at 4 sec) |
| Cool Fan Off Delay |
adj. 30, 60 sec (set at 30 sec) |
| Temperature Range, Ambient (F) |
-40 F to +175 F |
| Temperature Range, Ambient (C) |
-40 C to +79 C |
| Approvals, Underwriters Laboratories Inc |
Listed: Report MP466 |
| Approvals, Canadian Standards Association |
Certified: File No. LR95329-17 |
| Replaces |
all ST9101's, all ST9120's, all ST9141's, and all ST9160's |
| Tradeline Value |
Universal Tradeline
|
|
