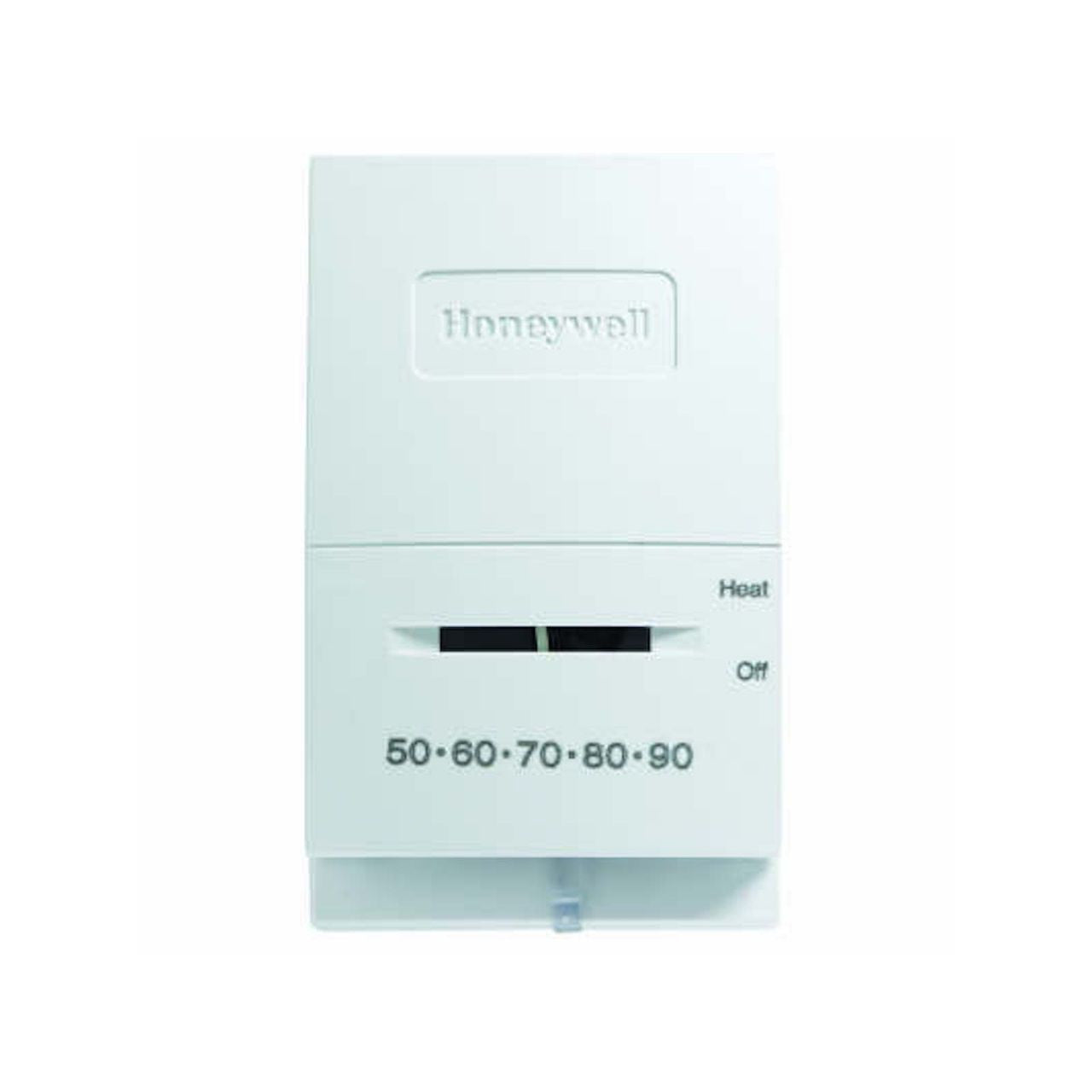

Honeywell T822K1000 Econostat Mercury-Free Low-Volt Heat

Meet all current and future mercury-free thermostat compliance needs with Honeywell’s Mercury-Free Econostat. With a sleek, attractive appearance, and the same precision temperature control and reliable performance as the original Econostat, the Mercury-Free Econostat is the perfect electromechanical replacement choice for you and your customers.

Overview
Thermostats provide 24 Vac control of heating or cooling systems

Features

• Vented cover for improved temperature sensing
• Setting lever and thermometer scale on thermostat face
• Mounts directly on the wall or on vertical outlet box
• Integrated thermometer and setting scale

Product Specifications

Application

Heat Only

Dimensions (in.)

4 3/4 in. high x 2 7/8 in. wide x 1 3/8 in. deep

Dimensions (mm)

121 mm high x 73 mm wide x 35 mm deep

Item Type

Product

Mounting

Vertical

Electrical Ratings

20 to 30 Vac

Stages

1 Heat

Supply Voltage

20 to 30 Vac

Switch Positions (System)

HEAT-OFF

Sensor Element

Bimetal

Accuracy (F)

±2 F

Accuracy (C)

±1 C

Color

Premier White

Switching Action

SPST

Switch Type

Precision Snap Action

Terminal Designations

R, W

Setting Temperature Range (F)

45 F to 95 F

Heat Current

0.02 A to 1.0 A running
