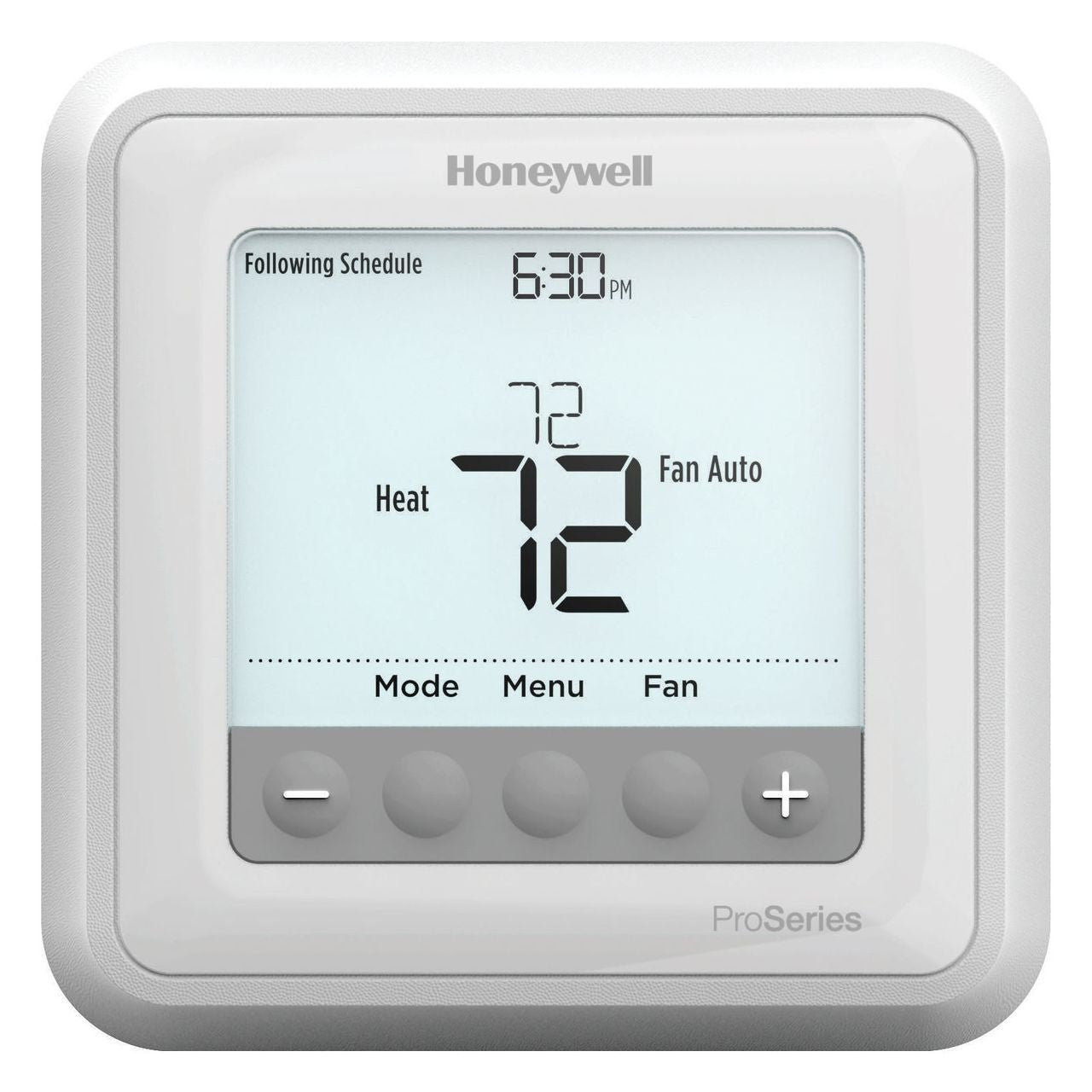

Honeywell TH6220U2000 T6 Pro Prog Thermostat 2H/1C HP
Honeywell TH6220U2000 T6 Pro Prog Thermostat 2H/1C HP
THE NEW HONEYWELL T6 PRO PROGRAMMABLE THERMOSTAT
Features and Benefits of the TH6220U2000
- 2H/2C or 2H/1C Heat Pump
- Push-button programmable
- Battery or C-wire
- Optional dual fuel
- Optional wired indoor/outdoor sensors
- 7-day, 5-2, 5-1-1 or non-programmable
- 5-year Manufacturer warranty
Application
- Standard Efficient Gas Forced Air
- High Efficacy Gas Forced Air
- Oil Forced Air
- Electric Forced Air
- Hot water Fan Coil
- Geothermal Heat Pump
- Air to Air Heat
Includes
- Thermostat
- UWP mounting system
- Installation (J-box) adaptor
- Small decorative cover plate, screws and anchors
- Installation Guide
- User Guide
- 2 AA Batteries
Product Specifications (In Brief)
Stages/Equipment |
2H/2C conventional or 2H/1C heat pump systems |
Dimensions |
4.09" x 4.09" x 1.06" (WHD) |
Display Size |
5.44 sq in |
Input Voltage |
24VAC |
Operating Temperature |
37° to 120° F |
Operating Humidity |
5% to 90% non-condensing |
Storage Temperature |
-20° to 120° F |
Short Cycle Protection |
5 minutes |
Control Range |
40° to 99° F |
While the products Climatedoctors carry are designed so that anyone can install them, the Climatedoctors team stands by the policy that all Heating & Cooling work be performed by a licensed professional.
Introducing
THE NEW STANDARD FOR SIMPLE
The Honeywell T Series is a portfolio of non-connected and Wi-Fi connected thermostats. With an interface you know, features you trust and the Honeywell quality you depend on in a sleek new aesthetic, the non-connected T Series thermostats are setting the new standard for simple.
Simple selection
The new T Series thermostats replace 36* different models
*Based on Manufacturer’s Compatibility Sheet
Simple installation
All T Series thermostats use the same UWP mounting system
Simply sleek
All T Series are designed in a sleek new aesthetic
