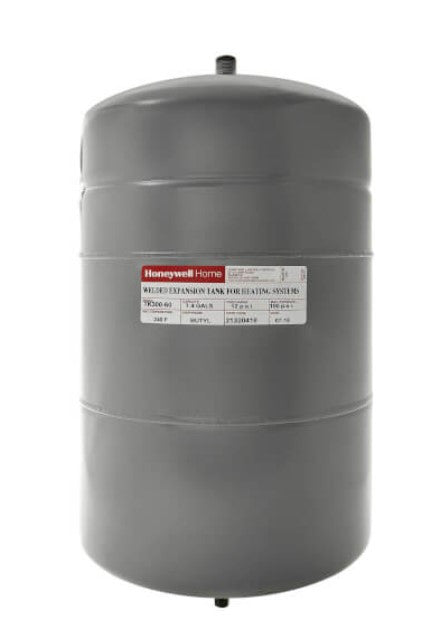

Honeywell TK300-60 1/2" External NPT Heating 7.6 Gal Expansion Tank
Honeywell TK300-60 1/2" External NPT Heating 7.6 Gal Expansion Tank
No reviews
Regular price
$111.17 USD
Regular price
Sale price
$111.17 USD
Unit price
/
per
Overview
Honeywell Expansion Tanks absorb hot water expansion in closed heating systems. They are equipped with butyl diaphragms to separate the air from the system water. Pre-pressurized, the tank keeps fluids circulating and maintains minimum pressure.
Features
- Butyl/EPDM diaphragm- 9 times better than natural rubber
- Deep-drawn steel tank
- Controls system pressure
- Air-tight cushion-factory pre-charged to 12 psig and 100% tested
Product Specifications
- Hazmat Information
- UN 1956 COMPRESSED GAS, N.O.S.,(air with up to 15% helium), 2.2
- Maximum Safe Operating Pressure (psi)
- 100 psi
- Maximum Safe Operating Pressure (kPa)
- 689 kPA
- Weight (lb)
- 14 lb
- Weight (kg)
- 6.4 kg
- Materials
- Steel shell; Heavy duty Butyl diaphragm
- Comments
- Heating
- Item Type
- Product
- Operating Temperature Range (F)
- 240 F Maximum
- Operating Temperature Range (C)
- 115 C Maximum
- Connection Size (in.)
- 1/2 in.
- Volume (gal)
- 7.6 gal
- Volume (L)
- 28.8 L
- Maximum Acceptance Volume (gal)
- 2.5 gal
- Maximum Acceptance Volume (L)
- 9.5 L
- Diameter (in.)
- 11 in.
- Diameter (mm)
- 279 mm
- Height (in.)
- 23 in.
- Height (mm)
- 584 mm
- Connection Type
- Male NPT
