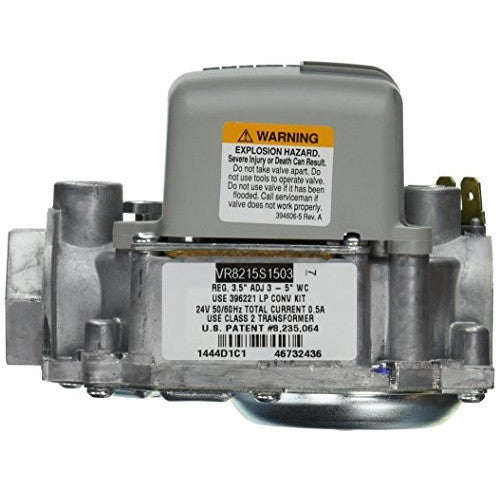

Honeywell VR8215S1503 Direct Ignition Gas Valve 24V S Stage

Product Specifications

Application

Single Stage

Dimensions (in.)

3.38 inches high x 4.44 inches widex 2.70 inches deep

Dimensions (mm)

113 mm long x 86 inches high x 69 mm wide

Includes

Natural to LP Conversion Kit

Item Type

Product

Mounting

Multipoise - Mounts in any direction

Frequency

50, 60 Hz

Approvals, CSA

CSA International: 112395

Electrical Connections

1/4 in. quick-connect male terminals

Voltage

24 Vac

Operating Temperature Range (F)

-40 F to +175 F

Operating Temperature Range (C)

-40 C to +79 C

Body Pattern

Straight-through

Opening Characteristics

Standard

Pressure Ratings (psi)

1/2 psi

Pressure Ratings (kPa)

3.5 kPa

Inlet/Outlet Size (in.)

1/2 in. x 1/2 in.

Pilot Gas Outlet

None

Pressure Tapping

1/8 in. NPT with plug

Type of Fuel

Natural (LP with included conversion kit)

Pipe Size (inch)

Capacity (kBtuh)

At 1 in. wc p.d.-- 150,000 BTUh: 15,000 BTUh minimum: 200,000 BTUh maximum Natural Gas

Approvals, Australian Gas Association

7960

Pressure Regulator

Standard

Pressure Regulator Setpoint (in. wc)

3.5 in. wc

Pressure Regulator Setpoint (kPa)

0.87 kPa

Ignition Type

Direct Ignition
