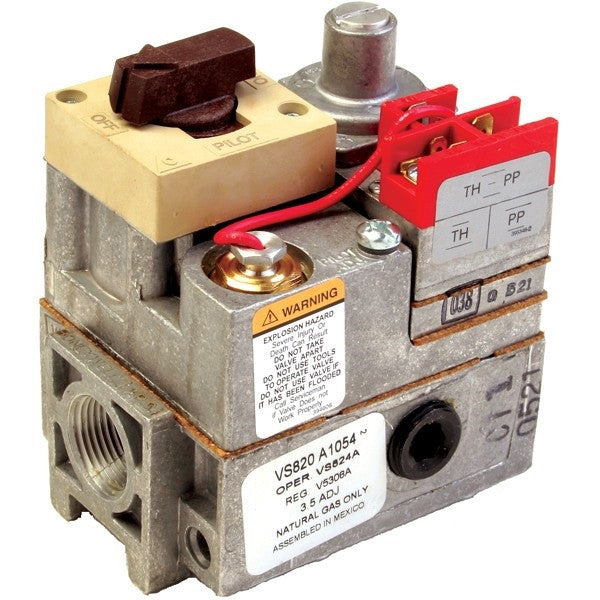

Honeywell VS820A1054 PowerPile Millivolt Gas Valve 3/4 x 3/4
Honeywell VS820A1054 PowerPile Millivolt Gas Valve 3/4 x 3/4
No reviews
Regular price
$465.13 USD
Regular price
Sale price
$465.13 USD
Unit price
/
per
Overview
These gas controls combine a Lite-Rite manual gas cock, safety shutoff Pilotstat assembly, millivoltage automatic valve operator, and optional gas pressure regulator. They require the use of a 750 mv Powerpile generator (thermopile) for operation.
Features
- Include pilot flow adjustment screw.
- Easy to install, adjust and service; all adjustments and connections are accessible from top of control.
- Add separate energy cutoff (ECO) where codes call for dual safety shutoff.
- Complete safety shutoff on pilot flame failure.
- LITE-RITE (OFF-PILOT-ON) lighting sequence.
- ECO connector for V800 models, Part No. 392451-1.
Product Specifications
- Application
- Self-powered automatic control. Use with 750 mV pilot generator.
- Dimensions (in.)
- 4 3/4 in. high x 4 1/16 in. wide x 3 3/16 in. deep
- Dimensions (mm)
- 121 mm high x 103 mm wide x 81 mm deep
- Includes
- One 1/2" x 3/8" reducer bushing; Two 3/4" x 1/2" reducer bushings
- Mounting
- 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
- Approvals, Underwriters Laboratories Inc.
- UL Component Recognized
- Tradeline Value
- Tradeline
- Electrical Connections
- Terminal block has 3 combination screw and 1/4 in. quick connect terminals.
- Voltage
- 750 mV
- Operating Temperature Range (F)
- 32 F to 175 F
- Operating Temperature Range (C)
- 0 C to 79 C
- Approvals, Canadian Gas Association
- CGA Design Certified: File no. L2025003
- Body Pattern
- Straight-through. multi-tapped with 1/2 in. right and left outlets plugged, except as noted.
- Pressure Ratings (psi)
- 1/2 psi
- Pressure Ratings (kPa)
- 3.5 kPa
- Inlet/Outlet Size (in.)
- 3/4 in. NPT x 3/4 in. NPT with 1/2 in. NPT side outlets
- Pilot Gas Outlet
- Compression fitting for 1/4 in. OD tubing.
- Pressure Tapping
- 1/8 in. npt with plug.
- Approvals, American Gas Association
- AGA Design Certificate: L2025003
- Type of Fuel
- Natural
- Pressure Regulator
- Standard
- Pressure Regulator Setpoint (in. wc)
- 3.5 in. wc Reg. Set/3-5" Adj. Range
- Pressure Regulator Setpoint (kPa)
- 0.87 kPa
