Overview:

Intermittent Pilot Retrofit Kits save energy by converting atmospheric standing pilot systems to intermittent pilot. Typical applications are gas-fired atmospheric furnaces, boilers and heating appliances.

Features:

• Use with natural or LP gas

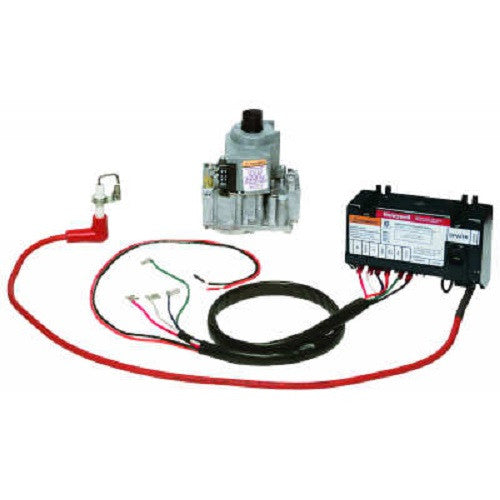

• Includes gas valve, ignition module, pilot burner hardware, ignition cable, and wiring harness
• Provides 100 percent pilot gas shutoff if pilot fails to light; after 6-minute delay, trial for ignition is repeated.
• Ignition trail/delay sequence is repeated until the appliance lights or call for heat is removed.

Product Specifications:

Includes: VR8204A2142 valve (1/2 x 1/2; 3.5" WC setting; 150 kBtu/hr at 1" p.d.)

Electrical Ratings: 24 Vac

Frequency: 60 Hz

Flame Failure Response Time: 2.0 seconds

PrePurge: 0 or 30 seconds

Ambient Temperature Range: -40F to +165F

Ignition System Type: Intermittent Pilot

Ignition Sequence: Continuous retry, after trial for ignition, pilot gas shuts off for 5 minutes, then another trial for pilot ignition takes place

Typical Gas Control: VR8204, VR8304

Type of Gas: Natural or LP

Flame Sense: Single Rod or Two Rods

Ignition Source: Internal high voltage spark generator

Ignition Trials To Lockout: continuous retry

Lockout Timing: 15 or 90 seconds

Maximum Valve Load @ 23 Vac (Amps): 1A Pilot, 2A Main @ 24Vac

Typical Ignition Hardware: Q345, Q3451
