Honeywell Y8610U6006 Intermittent Pilot Retrofit Kit
Honeywell Y8610U6006 Intermittent Pilot Retrofit Kit
No reviews
Regular price
$342.84 USD
Regular price
Sale price
$342.84 USD
Unit price
/
per
Gas Ignition Conversion Kit
Overview
Intermittent Pilot Retrofit Kits save energy by converting atmospheric standing pilot systems to intermittent pilot. Typical applications are gas-fired atmospheric furnaces, boilers and heating appliances.
Features
- Use with natural or LP gas

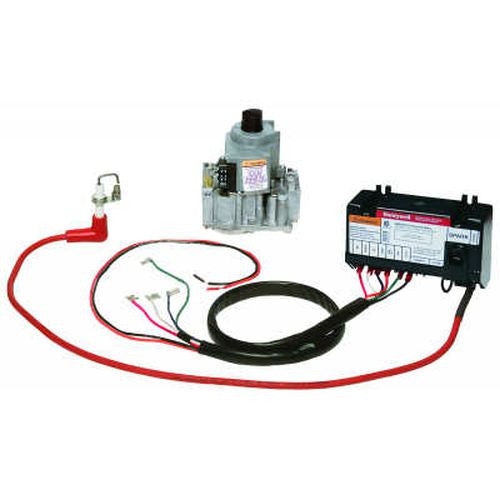

- Includes gas valve, ignition module, pilot burner hardware, ignition cable, and wiring harness
- Provides 100 percent pilot gas shutoff if pilot fails to light; after 6-minute delay, trial for ignition is repeated.
- Ignition trail/delay sequence is repeated until the appliance lights or call for heat is removed..
Product Specifications
- Dimensions (in.)
- 3 15/16 in. high x 5 7/16 in. wide x 2 5/8 in. deep
- Dimensions (mm)
- 100 mm high x 138 mm wide x 67 mm deep
- Includes
- VR8304M3558 (1/2 x 3/4; 3.5" setting; 270kBtu/hr at 1 in. p.d.)
- Electrical Ratings
- 24 Vac
- Frequency
- 60 Hz
- Flame Failure Response Time (sec)
- 2.0 sec
- PrePurge
- 0 or 30 seconds
- Ambient Temperature Range (F)
- -40 F to +165 F
- Ambient Temperature Range (C)
- -40 C to +74 C
- Ignition System Type
- Intermittent Pilot
- Ignition Sequence
- Continuous retry, after trial for ignition, pilot gas shuts off for 5 minutes, then another trial for pilot ignition takes place
- Typical Gas Control
- VR8204, VR8304
- Type of Gas
- Natural or LP
- Flame Sense
- Single Rod or Two Rods
- Ignition Source
- Internal high voltage spark generator
- Ignition Trials To Lockout
- continuous retry
- Lockout Timing
- 15 or 90 seconds
- Ignition Trial Time (sec)
- 15 or 90 seconds
- Maximum Valve Load @ 24 Vac (Amps)
- 1A Pilot, 2A Main @ 24Vac
- Typical Ignition Hardware
- Q345, Q3451
