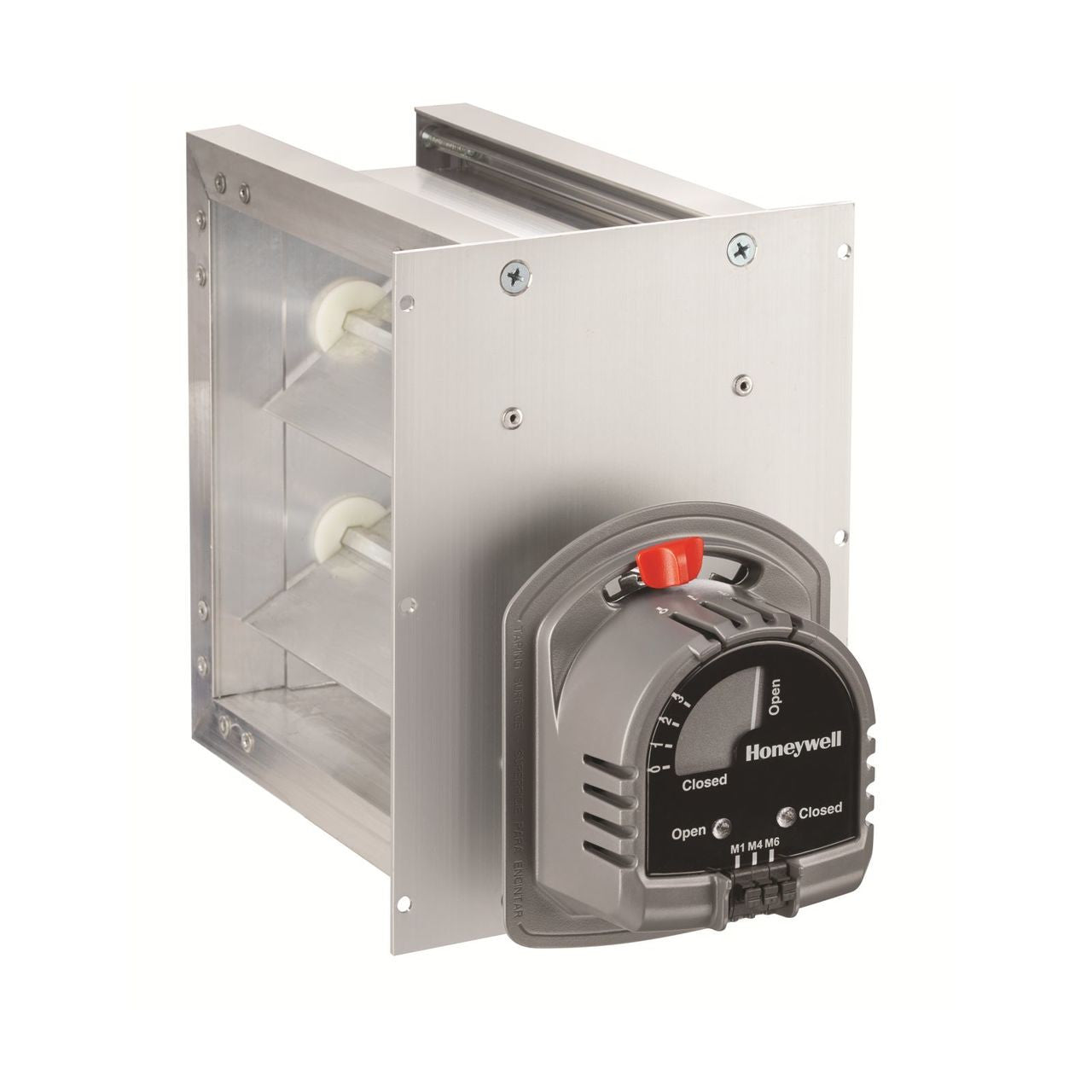

Honeywell ZD8X16TZ Rectangular Parallel Blade Damper

Overview
The ZD is a power close and spring open damper. It has a 24-volt motor used to control circulating air in HVAC systems and used when a normally-open damper is required. The ZD is typically used with the TrueZONE and other electronic zoning systems. The ZD8X16TZ is a direct replacement for the ZD8X16

Features

• Mechanical visual position indicator for damper status.
• Solid construction using extruded aluminum frame and blades.
• Parallel blade design for low leakage performance.
• Simple, easy-to-wire, two-wire installation.
• Reliable, strong, 24-volt spring-return motor.
• Fail-safe, normally open operation.
• Ordering Instructions: Order ZD (dimension 1) x (dimension 2). (Motor is always mounted on dimension 2 side.) For example, ZD10x8 is a 10 in. x 8 in. damper with the motor on the 8 in. side; but a ZD8x10 is an 8 in. x 10 in. damper that has the motor on the 10 in. side.
• Damper can be installed in any orientation (mounting side can be on either the bottom or the side of the duct).

Product Specifications

• Application: Parallel Blade Damper
• Used With: Honeywell zoning systems
• Item Type: Product
• Voltage: 24V
• Size (in.): 8 in. x 16 in.
• Blade Action: Parallel
• Shape: Rectangular
• Motor or Actuator Mounting: Bottom
• Motor: Power closed, spring open
• Motor Timing: 30 seconds power open/10 seconds spring return
• Wires to Motor: Terminals: M1-Power; M6 Common; M4 (optional)-LED indication
• Other Motor Information: Simplified range stops
