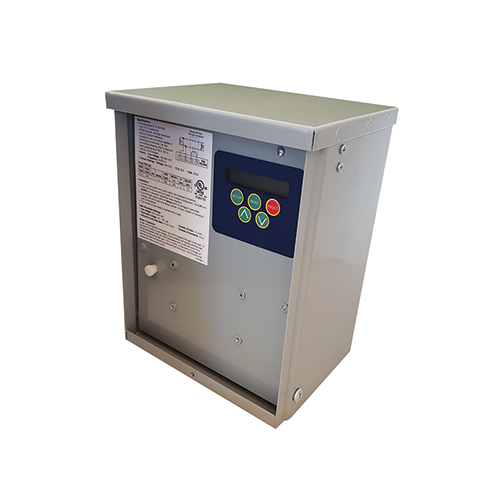

ICM 493-60A LINE VOLTAGE - SINGLE PHASE MONITOR

ICM 493-60A LINE VOLTAGE - SINGLE PHASE MONITOR

$294.44 USD
$294.44 USD
Sale Sold out
The ICM493-60A is an advanced, single-phase line voltage monitor with a bank of surge arresters for added protection against lightning strikes. Includes a built-in 60A contactor to support larger systems. Housed in a NEMA Rated 3R enclosure for outdoor installations. UL Recognized. Installs easily between the service disconnect and the condensing unit. Ideal for Mini-Splits or other valuable, single-phase equipment.
  • Protects against over and under voltage, rapid short cycling caused by transients, and high-power surges
  • Ideal for mini-splits or other condensing units
  • Easy to view, backlit digital display
  • Bank of five L-L Surge Arresters
  • Built-in 60A Contactor
  • Waterproof, NEMA–rated 3R enclosure for outdoor use
  • Easy installation and setup

WEIGHT/DIMENSIONS:

  • Weight: 11.4 lbs.
  • Height: 6.37″
  • Width: 10.25″
  • Length: 8.25″

SPECIFICATIONS:

User Adjustable Settings
  • Voltage Setpoint: 200-240 VAC
  • Anti-Short Cycle Delay: 0.5-10 Minutes
  • Number of Surge Arresters Required for Operation: 0-5
  • Number of Retries: 1-5, Auto

Inputs
  • Line Voltage: 195-264 VAC
  • Frequency: 50-60 Hz
  • Accuracy: +/- 2%, User Calibration

Output
  • Type: Contactor; 2-Pole
  • Contactor Ratings: 60A FLA, 360A LRA

Mechanical
  • NEMA Rated 3R Outdoor Enclosure
  • Dimensions: 8.25”L x 10.25”W x 6.37”H
