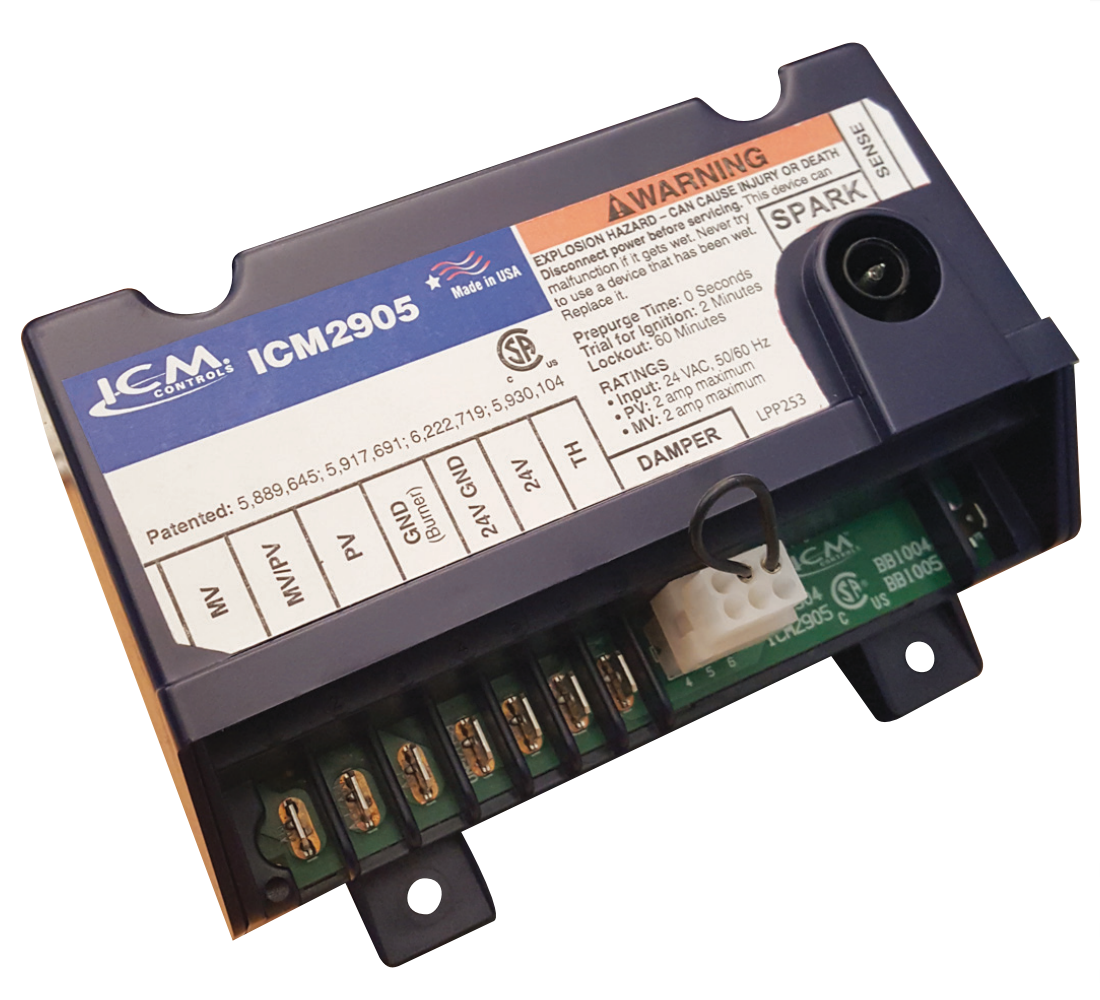

ICM Contols ICM2905 OEM Gas Ignition Control Board

ICM Contols ICM2905 OEM Gas Ignition Control Board

Features
•Intermittent pilot gas ignition control module
•For use with intermittent pilot boilers, furnaces
and other heating appliances
•Microprocessor-based
•Monitors timing, trial for ignition, flame sensing
and lockout
•Remote flame sensing
•2 minute trial for ignition
•60 minute lock out if pilot flame is not sensed in
2 minutes
•Compatible with LP or natural gas
•Damper control input

Specifications
•Control Voltage: 18-30 VAC
•Frequency: 50/60 Hz
• Humidity: 5%-95% R.H. (non-condensing) at +55°C
•Operating Temperature: -40°F to 165°F, -40°C to 75°C
• Pilot Valve: 2A @ 24 VAC
• Main Gas Valve: 2A @ 24 VAC
•Current Draw: 100 mA maximum
•Pre-Purge Delay: 0 seconds
•Trial for ignition: 2 minutes
•Lock Out Time: 60 minutes

Replaces
257010
