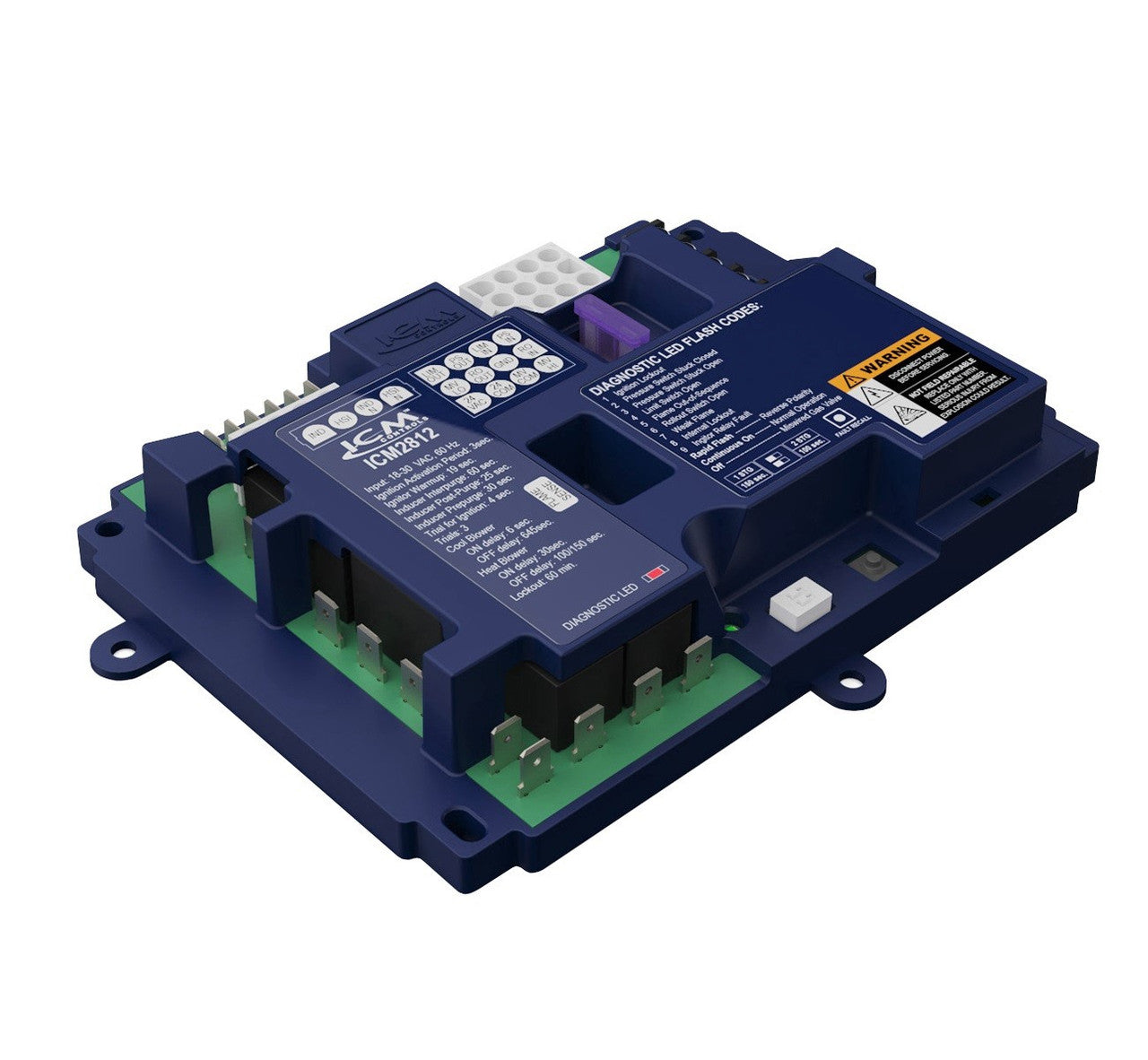

Icm Controls ICM2812-KIT Universal OEM Replacement Control
Icm Controls ICM2812-KIT Universal OEM Replacement Control
No reviews
Regular price
$115.23 USD
Regular price
Sale price
$115.23 USD
Unit price
/
per
The ICM2812-KIT is a universal replacement board that comes packaged with a series of cable harnesses that make it a replacement for the White-Rodgers 50M56U-843 and more than 150 competitive part numbers. Download the ICM Controls app for full cross reference information.
- Hot Surface Ignition (HSI) control board
- Microprocessor-based
- Monitors timing, trial for ignition, system switches, flame sensing and lockout.
- 100% lockout safety feature
- Compatible with LP or Natural Gas
- LED indication for status and fault codes to aid in troubleshooting
WEIGHT/DIMENSIONS:
Weight: 1 lb.
Length: 5.125
Width: 7.0
Height: 1.25
SPECIFICATIONS:
Electrical
- Control voltage: 24 VAC (18-30 VAC)
- Line voltage: 120 VAC
- Operating temperature: -40 to 175F (-40 to 80C)
- HSI Hot Surface Ignitor: 6 amp @ 120 VAC
- Gas Valve: 1.5 amp @ 24 VAC
- Inducer draft motor: 2.2 FLA @120 VAC
- Blower motor: 14.5 FLA @ 120 VAC
Environmental
- Operating Temp Range: -40° to 176°F (-40° to 80°C)
- Humidity Range: 5 to 95% relative humidity (non-condensing)
