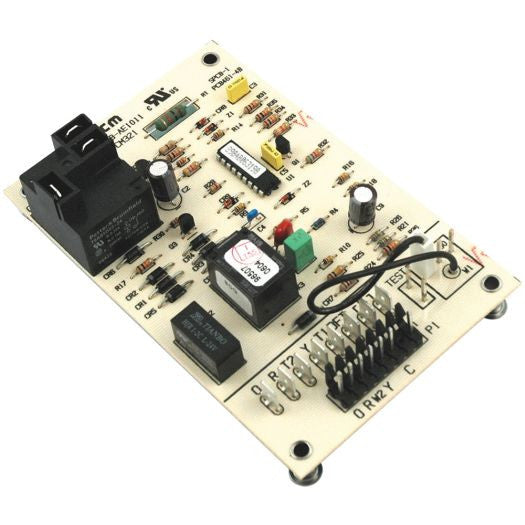

ICM ICM321 Solid State Defrost Control ICM 321C

ICM321 Solid State Defrost Control

Specifications

Input
Voltage: 18 to 30 Vac
Frequency: 50/60 Hz
Power Consumption: 1 watt max.

Output
O, W2
Type: Relay
Form: DPST, N.O.
Rating: 1 amp @ 30 VAC resistive
T1, T2

Type: Relay
Form: SPST, N.O.
Rating: 1 amp @ 30 VAC
OF1, OF2
Type: Relay
Form: SPST, N.O.
Rating: 1/2 HP @ 240 VAC

Time Delays
Anti-Short Cycle Delay: 5 minutes
Defrost Time: Fixed 10 minutes + 5%
Interval Time Between Defrosts: Pin-selectable 30/50/90 minutes
Test Time: Short across test terminals reduces test time 256x
Power on Reset Time: 500ms
