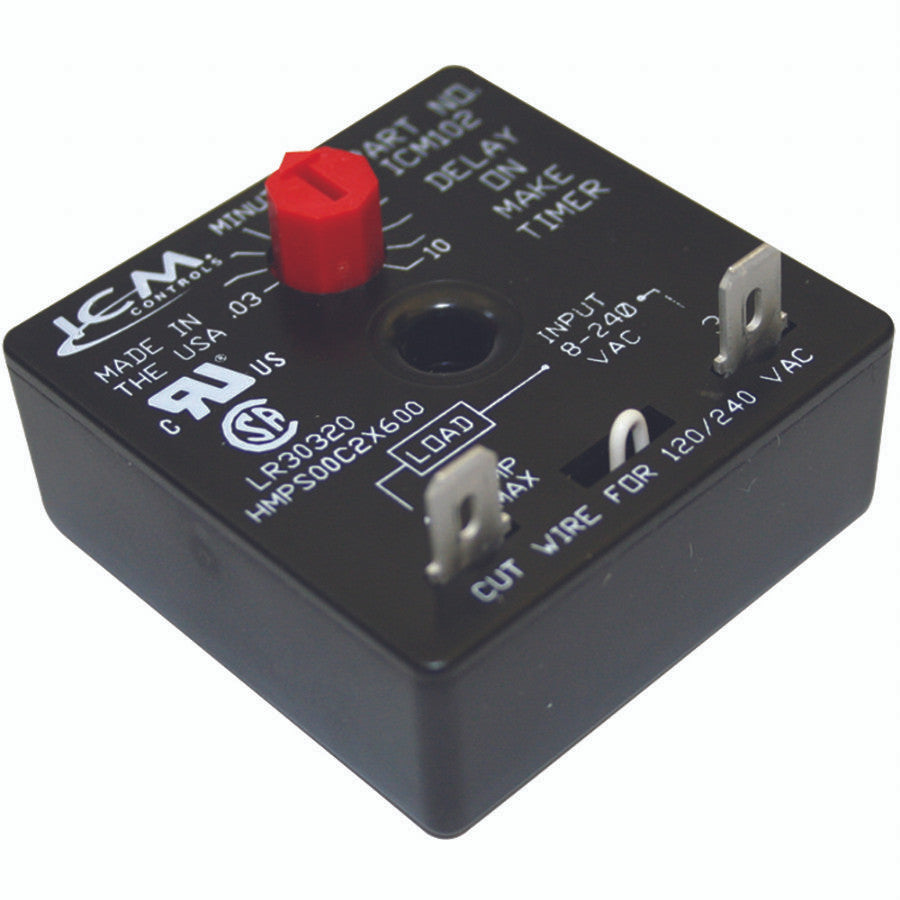

ICM102 Delay On Make Timer

ICM Controls ICM102 DOM Timer .03 to 10 Minutes Adjustable

Description

Delay-on-Make Timer with .03-10 minute adjustable delay, universal 18-240 VAC

• Universal voltage operation
• Higher 1.5 amp power rating
• Knob-adjustable time delays
• Works with anticipator-type thermostats
• One model replaces many in field

Specifications

• Input Voltage: 18-240 VAC
• 1.5 amp
• 15 amp inrush
• Time Delay Adjustable delay: .03-10 minutes (1.5-600 seconds)

Replaces

• A-1: EAC-701-ADJ
• Diversified: AC-800
• Gemline: 1C310, 1C213
• Mars: 32019, 32391, 32367
• Supco: TD69
• Wagner/DiversiTech: ADM-1
• White Rodgers: 42-22763-82, 42-22906-01, 42-22328-01, and 42-22327-01
