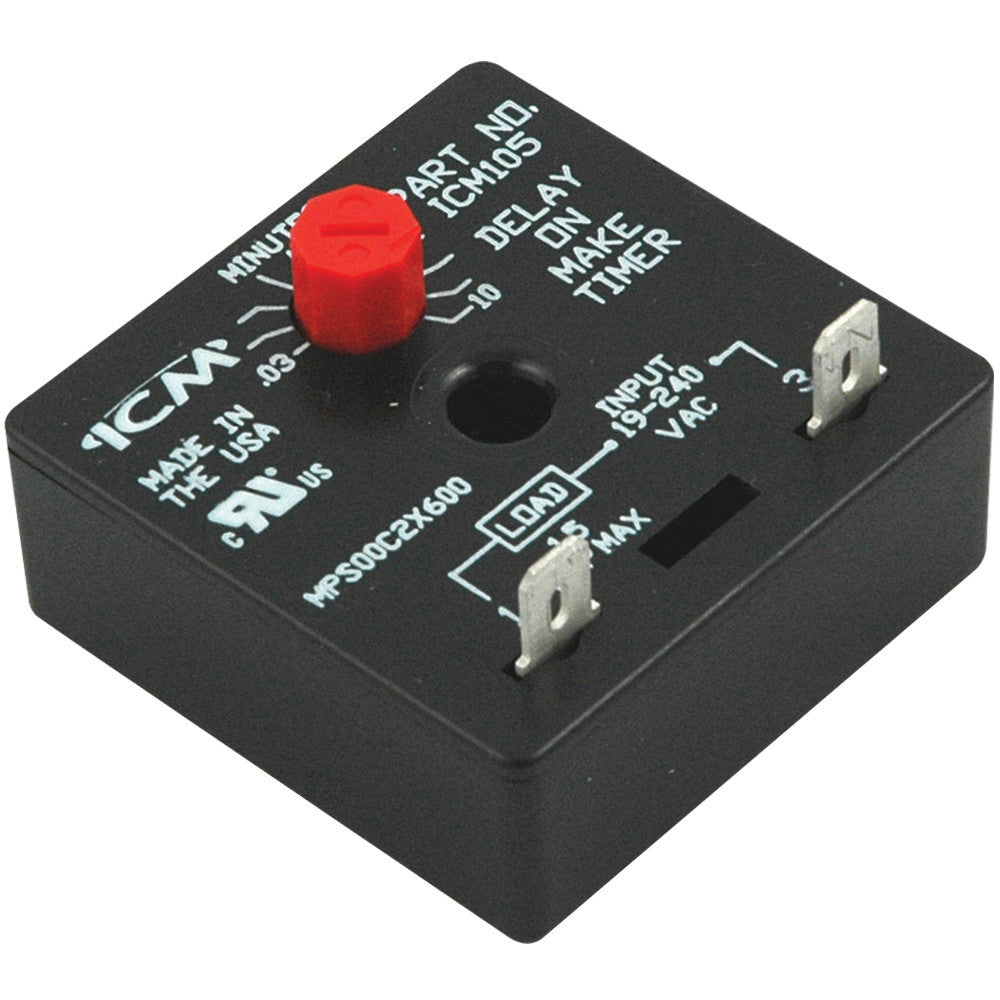

ICM105 Delay on Make Timer (.03-10 Minute Adjustable Delay)

Description:

• Low holding current
• Low cost version of the ICM102 without the cooling anticipator circuitry
• Ideal for compressor staging
• Universal voltage operation
• Knob-adjustable time delays
• Simple 2-wire hookup

Delay-on-Make Timer with .03-10 minute adjustable delay, universal 18-240 VAC (low cost version of the ICM102)
Specifications:
Input:
Voltage: 18-240 VAC
1.5 amp
15 amp inrush
10 mA holding current

Adjustable Time Delay:
.03-10 minutes (1.8-600 seconds)
Weight/Dimensions:
Weight: 0.1
Height: 1.25
Width: 2
Length: 2

Diversified: AC-800, ASC-600, ASC-601
Gemline: 1C310, 1C213
Mars: 32091
Supco: TD68
