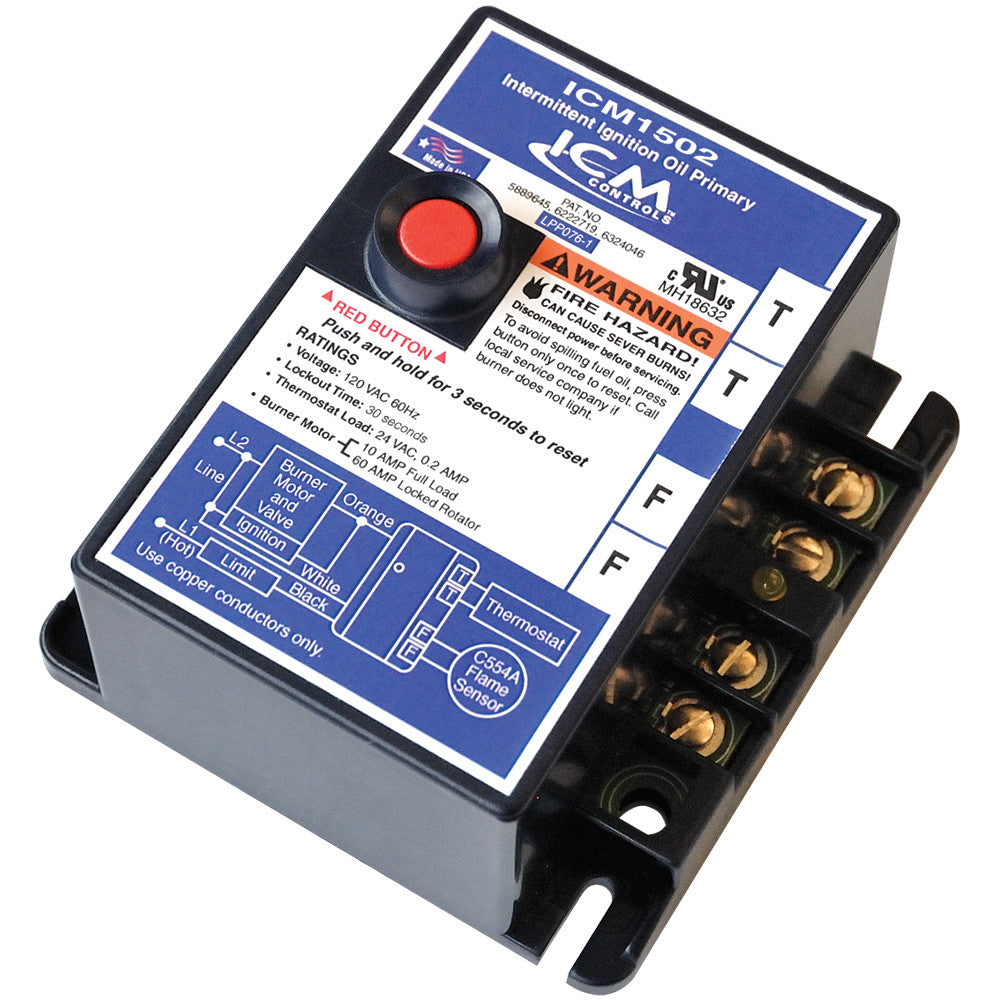

ICM1502 Oil Burner 30 Sec Replaces Honeywell R8184G

Description

• Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat
• Solid state flame sensing circuit
• LED on terminal strip indicates system lockout
• Enclosed safety switch with external reset button
• Mounts on standard 4x4 J-Box (select models may be mounted directly on burner housing)
• C554A Cadmium Sulfide Flame Detector and 24 VAC thermostat required
• Direct replacement for popular competitive models

Specifications

Ignition Type: Intermittent
Timing, Safety Switch: 30
Mounting Bracket: Standard 4x4 J-Box or direct mounting on burner housing
Electrical Rating (Contacts - Full Load): 7.4 A @ 120 VAC; 3.7 A @ 240 VAC
Electrical Rating (Contacts - Locked Rotor): 44.4 A @ 120 VAC; 22.2 A @ 240 VAC
Dimensions: 4 3/8"H x 4 1/8"W x 2 1/2"D (111mmH x 104mmW x 64mmD)
Temperature Range: -30ºF to 130ºF
Approvals: UL Approved

Product Specifications:

Timing, Safety Switch 30 sec.
Mounting Bracket For mounting on a standard 4 in. X 4 in. junction box or direct mounting on burner housing.
Electrical Rating; Contacts (full load) 7.4 A @ 120 Vac; 3.7 a @ 240 Vac>
Electrical Rating; Contacts (locked rotor) 44.4 A @ 120 Vac; 22.2 A @ 240 Vac.
Alarm Load Ratings (pilot duty) 75 VA @ 120/240 Vac, 50-60 Hz; 25 VA @ 24V, 50-60 Hz.
Alarm Load Ratings (resistive) 1.5 A @ 120/240V, 50-60Hz; 3 A @ 24 V, 50-60 Hz.
Approvals UL Component Recognized; File no. MP268, Vol. 35 Sec. 1,3. CSA Certified; File no. LR95329-1.
Dimensions (in.) 4 3/8 in. high, 4 1/8 in. wide, 2 1/2 in. deep.
Dimensions (mm) 111 mm high, 104 mm wide, 64 mm deep.
Ignition Type Intermittent.
Temperature Ratings (F) -40 F to +130 F.
Temperature Ratings (C) -40 C to +54 C.
Product Used With With LED for lockout indication, and manual trip lever on safety switch to assure burner shutdown during servicing.

Description Protectorelay Oil Burner ControlR8184G4074, R8184G13, CARR8184G4074, R8184G1179, R8184G1336, R8184G1302, CARR8184G13.

Replaces these Obsolete Part Numbers: R8184G1179, R8184G1302.
Used on: Shenandoah Waste Oil Furnaces.
Furnace Models: W0-F235.

Honeywell:R8184G; 4074, 1179, 1302, 4033
