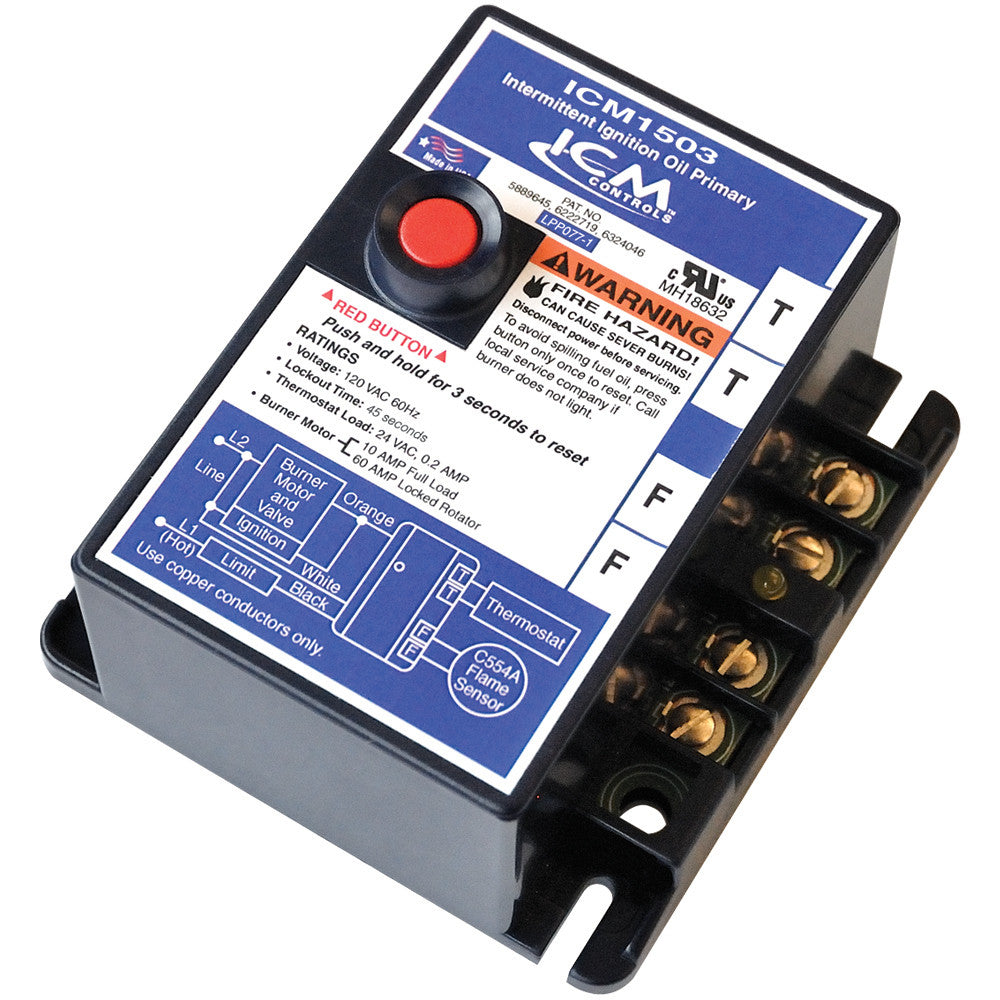

ICM1503 Oil Burner 45 Sec Replaces Honeywell R8184G4009

Description

• Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat
• Solid state flame sensing circuit
• LED on terminal strip indicates system lockout
• Enclosed safety switch with external reset button
• Mounts on standard 4x4 J-Box (select models may be mounted directly on burner housing)
• C554A Cadmium Sulfide Flame Detector and 24 VAC thermostat required
• Direct replacement for popular competitive models

Specifications

• Ignition Type: Intermittent
• Timing, Safety Switch: 45
• Mounting Bracket: Standard 4x4 J-Box or direct mounting on burner housing
• Electrical Rating (Contacts - Full Load): 7.4 A @ 120 VAC; 3.7 A @ 240 VAC
• Electrical Rating (Contacts - Locked Rotor): 44.4 A @ 120 VAC; 22.2 A @ 240 VAC
• Dimensions: 4 3/8"H x 4 1/8"W x 2 1/2"D (111mmH x 104mmW x 64mmD)
• Temperature Range: -30½F to 130½F
• Approvals: UL Approved

R8184G1005 HWR8184G1286 624503 R8184G 42-22770-01 R8184G1427 R8184G1310 R8184B1295 P691-R8484G R8184G4009 R8184G1427 R8184G1286 CARR8184G4009

Used in Rheem Ruud Furnace Models:

ROBC-150RBJA R0BC-150RBJA U0BC-150RBJA W0BC-150RBJA R0BC150RBJA U0BC150RBJA W0BC150RBJA
