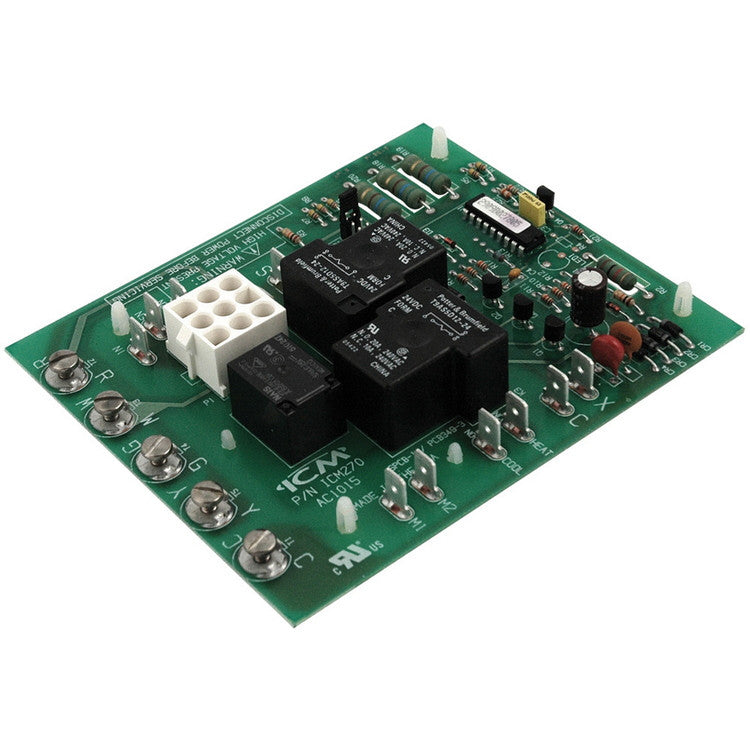

ICM270 Rheem Ruud Fan Blower Control Circuit Board

ICM270 Rheem Ruud Fan Blower Control Circuit Board

Replaces:47-22827-01, 47-22827-81, 47-22827-82, 47-22828-01, 47-22828-02

• Dual function fan delay timer
• Controls the circulating fan in a heat pump, A/C and forced air systems
• OFF delay purges ducts of residual air
• ON delay allows air to reach the proper comfort level prior to energizing the fan

Specifications

Input
Voltage:18-30 VAC
Frequency: 50/60 Hz

Output
Heat/Cool Speed
N.O.: 20 amps @ 240 VAC
N.C.: 10 amps @ 240 VAC

Time Delays Blower Off Time Adjustable
90,120,150,180 seconds
