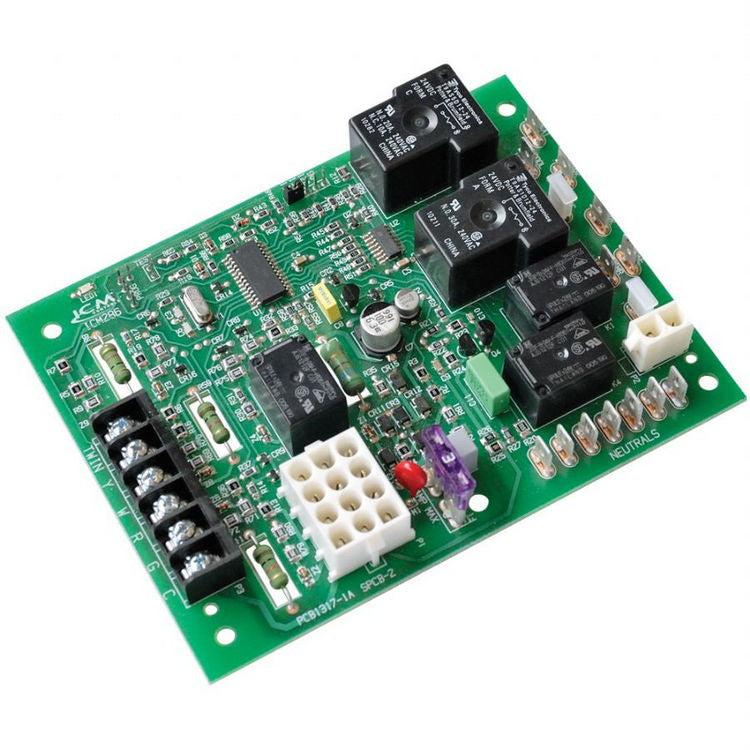

ICM286 Amana/Goodman B18099-26 B1809926S Control Board

The ICM286 Furnace Control Board is a form, fit and functional replacement for Goodman's popular PCBBF112S or B1809926S control board. It features micro-processor based precision with a status LED for testing and easy troubleshooting.

Features:

• Controls the gas valve, inducer draft motor, circulating blower and hot surface ignitor
• Monitors system pressure and limit switches
• Microprocessor based precision
• Twinning compatible with another ICM286 Control Board
• Diagnostic LEDs aid in testing and troubleshooting

Specifications:

Timing

Inducer Pre-Purge Time: 15 Seconds

Heat Blower On Delay: 30 Seconds

Heat Blower Off Delays: 90/120/150/180 Seconds

Cool Blower on Delay: 5 Seconds

Cool Blower Off Delay: 45 Seconds

Ignitor On: 7 Seconds

Inducer Post Purge: 15 Sceonds

Trails for Ignition: 3 (before soft lockout)

Auto Reset: 60 minutes

Â

Electrical

Voltage Range: (98-132 VAC) @ 60Hz

Cool Blower: 30A, 2HP, 240 VAC

Heat: 20A, 240 VAC

Inducer Motor: 4A FLA, 8A LRA @ 120 VAC

Ignitor: 10A FLA @ 120 VAC

Humidifier: 5 amps @ 120 VAC

Electric Air Cleaner: 5 Amps @ 120 VAC

Â

Replaces:

Goodman: PCBBF112S

Goodman: B1809926S

Goodman: 0130F00005S
