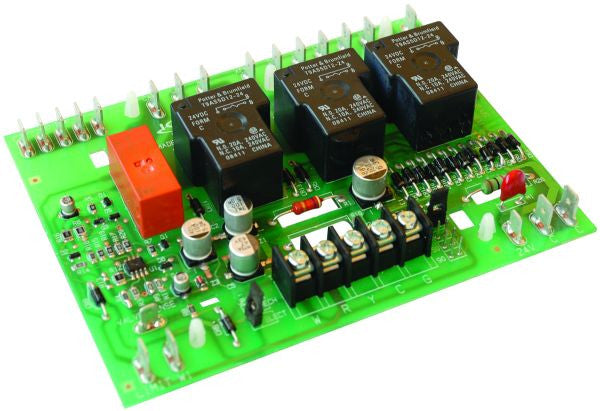

ICM289 Lennox 48K98 Furnace Ignition Control Module

ICM289 Lennox Replacement Furnace Ignition Control Module

Features:

• Low cost, direct replacement board for Lennox
• Controls Inducer fan motor, blower fan and monitors limit switches
• Microprocessor based design
• Functions with all 24 VAC thermostat

Specifications:

• Voltage Range: Line (98 to 132 VAC) @ 60 Hz
• Cool Blower: 20A @ 120 VAC
• Heat Blower: 20A @ 120 VAC
• Â Inducer Motor: 5A @ 120 VAC
• Â Cool Blower On Delay: 1 second
• Â Cool Blower Off Delay: 1 second
• Â Heat Blower On Delay: 45 seconds
• Â Heat Blower Off Delay: 90, 150, 210, 270 seconds

Replaces:

 Lennox -  Replaces all BCC1, BCC2 and BCC3 circuit boards, including models LB-53622A, BCC2-
2REV8, 35K77, 35K7701, LB-90089A, 65K29, 65K2901, LB-50709BD, LB-65126A, LB-
89859, LB-87086A, LB-90676B, LB-87086, LB-63622AA, LB-90676A, 40L8801, 30H6701, 48K98,
48K9801, 45K48, 45K4801, 78J61, 78J6101, 68H08.
