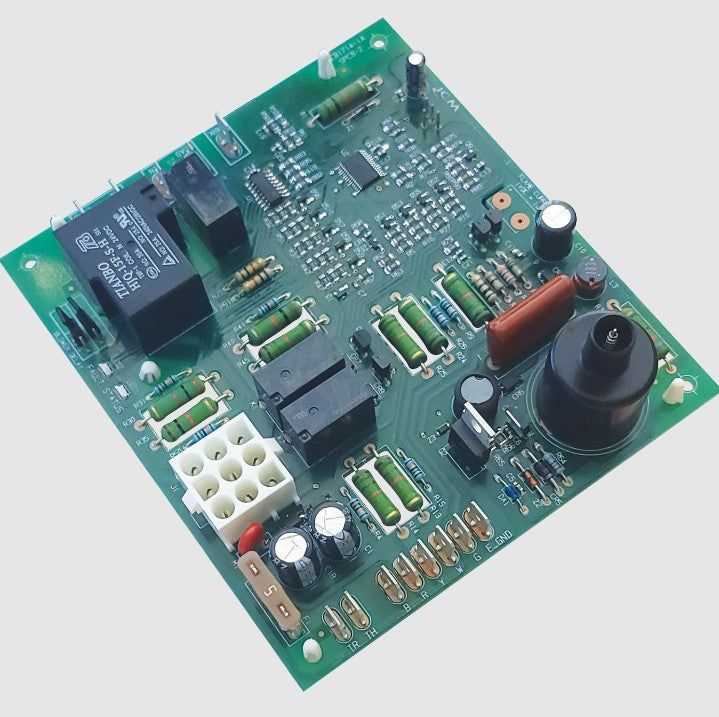

ICM2913 Direct Spark Ignition Control Board D674711P01

The ICM2913 is a form, fit, and functional replacement for the Trane Spark Ignition Control: D674711P01 shown in the cross-reference section of this guide. The control boards are designed as automated gas ignition controls that monitor the ignition sequence including the inducer, pressure switch, spark ignition, gas valve, flame sense, and circulating blower while maintaining full safety circuit monitoring including the high limit switch, roll out switch and auxiliary limit switch circuits.

• Controls blower motors, gas valve, & spark ignitor in sequence
• Protects against short cycling
• Selectable Heat/Cool blower off-delay time
• Flash codes from the onboard LED indicate specific problems for easier troubleshooting
• Repeated ignition failures or flame losses will disable heat operation for safety

WEIGHT/DIMENSIONS:

Weight: 0.38
Dimensions: 5.5”L x 4.75”W x 1.5”H

SPECIFICATIONS:

• Line voltage: 230 VAC

• Line frequency: 50/60 Hz

• Control voltage: 18-30 VAC

• Circulator blower: 10 FLA, 30 LRA @ 240 VAC

• Inducer blower: 0.7 FLA, 1.5 LRA @ 240 VAC

• Combined gas valve load: 1.5 A @ 24 VAC

• Minimum flame signal threshold: 0.75 uA
