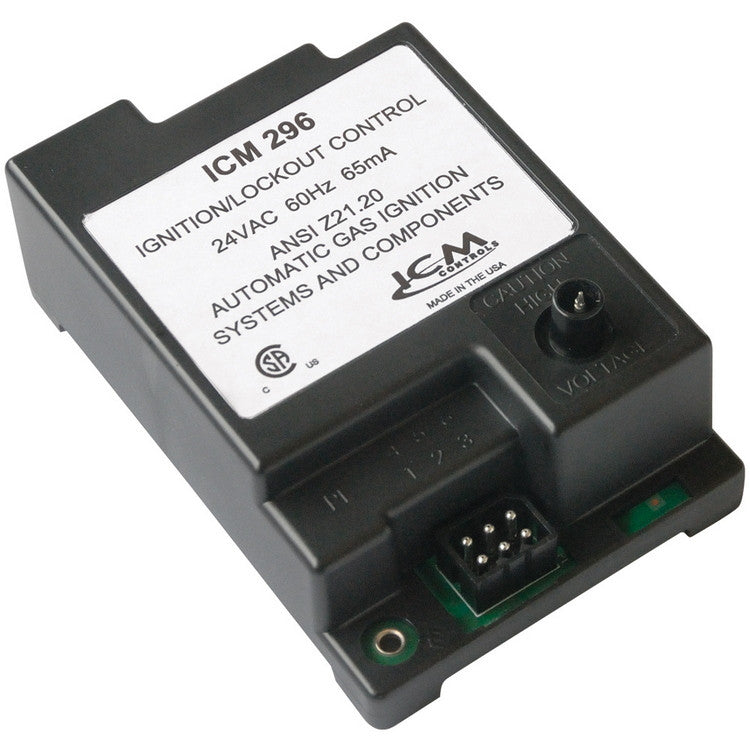

ICM296 IPI Gas Ignition Control replaces LH33WZ512A

ICM296 IPI Gas Ignition Control replaces LH33WZ512A

Features:

• Spark ignition control module
• For use with intermittent pilot boilers, furnaces and other heating appliances
• Microprocessor-based precision
• 100% safety lockout
• Works with both Natural and LP gas systems

Specifications:

Control Voltage: Line 24V (18-30 VAC), 50/60Hz

Spark Frequency: 60Hz




Prepurge: None
Lockout: 5-6 minutes

Retry: None

Relay Contact Rating: 1 amp @ 24 VAC

Trial for Ignition: 90 seconds

Flame Failure Response Time: 0.8 seconds max.

ÂÂ

Replaces:

Carrier: LH33WZ512A
