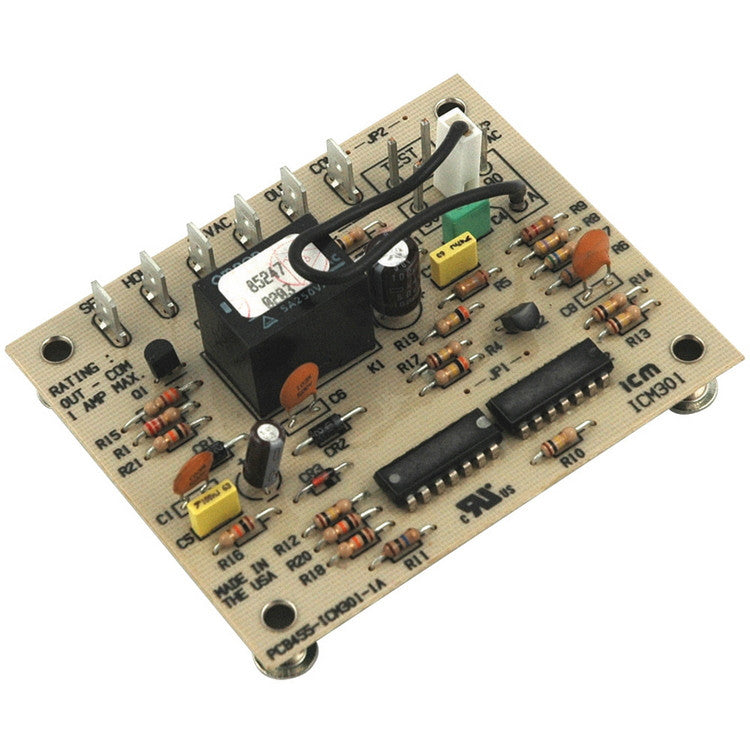

ICM301 Heat Pump Defrost Timer

ICM301 Heat Pump Defrost Timer

• Ultra low cost
• Simple time and temperature control
• Must have external relays for fan reversing valve and auxiliary heat
• High installed base

  Specifications

  Input

  Voltage: 18 to 30 VAC
  Frequency: 50/60 Hz
  Power Consumption: 1 watt max.


  Output

  Type: Relay
  Form: SPST, N.O.
  Rating: 1 amp


  Time Delays

  Defrost Time: Fixed 10 minutes + 5%
  Interval Time Between Defrosts: Pin-selectable 30/60/90 min
  Power on Reset Time: 500ms
  Test Time: Short across test terminals reduces test time 256x
