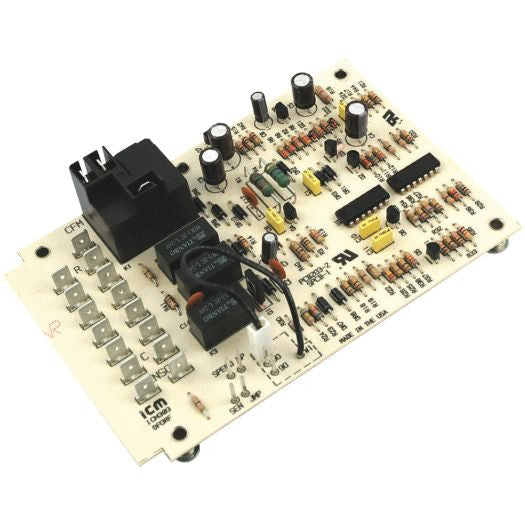

ICM303 Heat Pump Defrost Timer

ICM303 Heat Pump Defrost Timer

Specifications

Input

Voltage: 18 to 30 Vac
Frequency: 50/60 Hz
Power Consumption: 1 watt max.

Output

Type: Relay
Form: DPST, N.O.
Rating: 1 amp @ 30 VAC

Time Delays

Anti-Short Cycle Delay: 5 minutes
Defrost Time: Fixed 10 minutes + 5%
Interval Time Between Defrosts: Pin-selectable 30/60/90 minutes
Test Time: Short across test terminals reduces test time 256x
