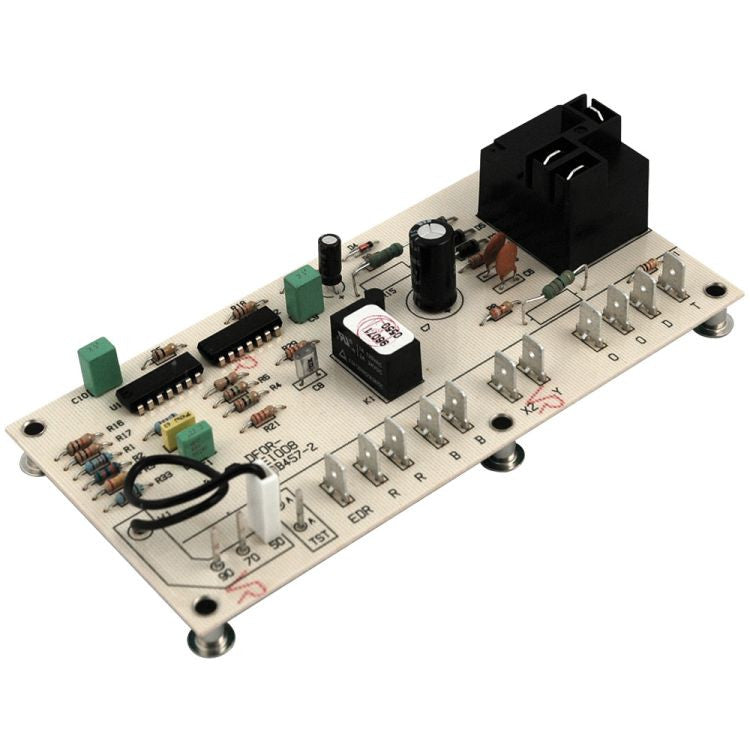

ICM316 Trane Heat Pump Defrost Timer

ICM316 Trane Heat Pump Defrost Timer

Input

Voltage: 18 to 30 Vac
Frequency: 50/60 Hz
Power Consumption: 1 watt max.

Output
O, X2Type: Relay
Form: DPST, N.O
Rating: 1 amp @ 30 VAC ODF Type: Relay
Form: SPDT, N.O.
Rating: 1 amp @ 230 VAC EDR Type: Relay
Form: DPDT, N.O.
Rating: 1 amp @ 30 VAC

Time Delays

Defrost Time: Fixed 10 minutes + 5%
Interval Time Between Defrosts: Pin-selectable 50/70/90 minutes
Test Time: Short across test terminals reduces test time 256x
Power on Reset Time: 500ms
