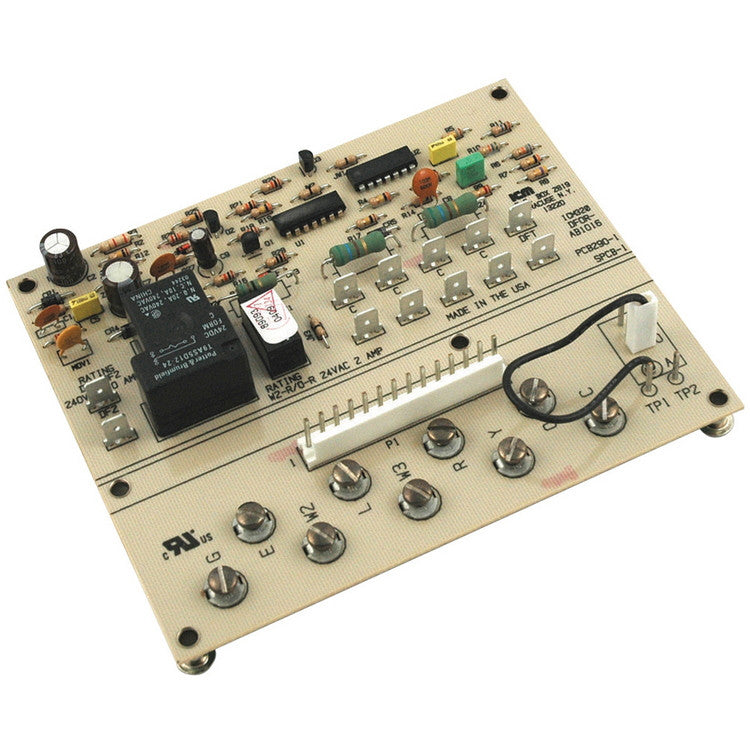

ICM320 Solid State Defrost Control Circuit Board

ICM320 Solid State Defrost Control Circuit Board

Specifications

InputVoltage: 18 to 30 Vac
Frequency: 50/60 Hz
Power Consumption: 1 watt max.

Output
O, W2Type: Relay

Form: DPST, N.O.
Rating: 2 amps @ 24 VAC DF1, DF2

Type: Relay
Form: SPST, N.O.
Rating: 10 amps @ 240 VAC

Time Delays
Defrost Time: Fixed 10 minutes + 5%
Interval Time Between Defrosts: Pin-selectable 30/50/90 minutes
Test Time: Short across test terminals reduces test time 256x
Power on Reset Time: 500ms
