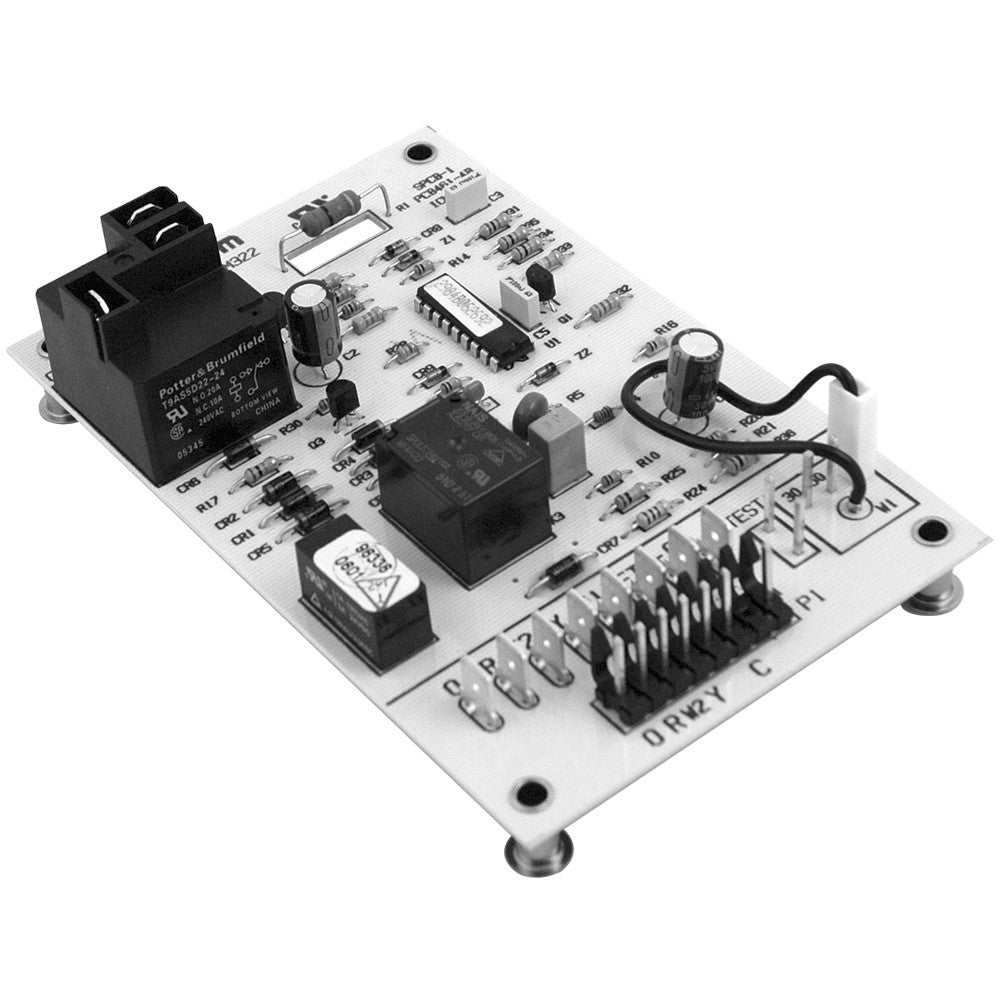

ICM322 Defrost Control Circuit Board Carrier CESO130024-00

Description:
Defrost Control - replacement for Carrier CES0130024-00 controls

Specifications:

• Voltage: 18-30 VAC
• Frequency: 50/60 Hz
• Outdoor Fan Relay Output:
• - N.O.: 20 amps
• - N.C.: 10 amps
• Defrost Time: Fixed 10 minutes
• Interval Time Between Defrosts: Pin-selectable 30/50/90 min

Weight/Dimensions:

• Weight: 0.2
• Height: 1.32
• Width: 3.5
• Length: 5.5

Features:

• Low cost, time and temperature defrost
• Time and temperature terminate
• Test pins reduce test time by 256X
• High power output, outdoor fan (1/2 HP fan @ 240 VAC)
• Strip heat, reversing valve outputs (24 VAC, 1 amp)
