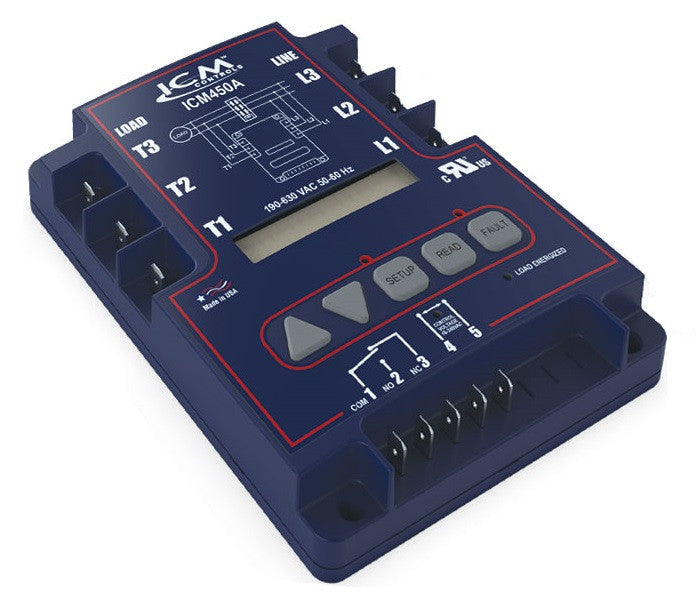

ICM450A Three-Phase Line Voltage Monitor

The ICM450A is the latest 3-phase offering for line voltage control, providing superior motor protection from premature failure and damage caused by common voltage faults such as phase unbalance, over/under voltage, phase loss and phase reversal. A design upgrade from the flagship ICM450, these newest models feature an easy to read, backlit display that makes quick work of adjusting the variable settings to better tailor the unit to the application. Common ¼” spade terminations eliminate the potential for exposed wires and allow for a better and safer connection.

SPECIFICATIONS:

Input:
• Voltage Range: Universal 190 – 600 VAC
• Frequency: 50-60 Hz
• Load Side Monitoring: Optional
• Control Voltage: 18 – 240 VAC

Output:
Type: Relay, SPDT
Voltage Range: 277 VAC @ 6A maximum

CONTROL OPERATING TEMPERATURE:
Operating Temperature: -40ºF to +149ºF (-40ºC to +65ºC)
Storage Temperature: -40ºF to +185ºF (-40ºC to +85ºC)

MECHANICAL:
Mounting: Surface mount using (2) #8 screws
Terminations: 1/4” quick connects
Weight: 12 ounces (341 grams)
