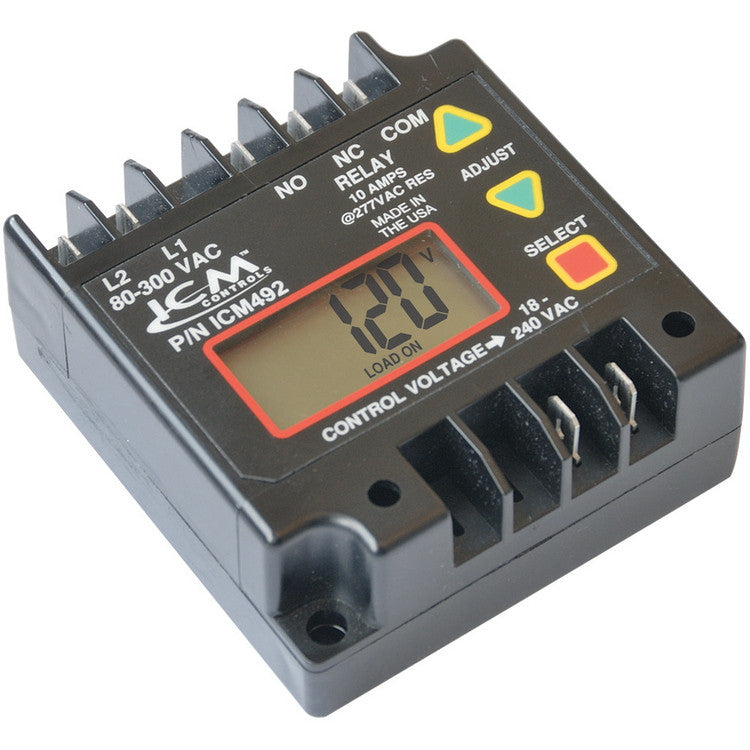

ICM492 Single Phase Digital Line Voltage Monitor

Specifications:

User Adjustable Settings:

- Voltage setpoint: 80-300 VAC

- Anti-short cycle time delay: 0-720 seconds

- Over voltage setting: 5-25%

- Under voltage setting: 5-25%

- Control mode: On and Off

- Response time: 0.1 to 10 seconds

Inputs:

- Voltage: 80 to 300 VAC

- Frequency: 50/60 Hz

- Accuracy: ±2%

- Low Power Consumption: max 50 mA @ 120V, max 100 mA @ 240V

- Control Voltage: 24 to 240 VAC

Output:

- Type: Dry relay contacts

- Form: SPDT

- Relay Contact Ratings:

- N.C. Contacts: 10A resistive @ 277 VAC;

- N.O. Contacts: 10A resistive @ 277 VAC

- Connection Terminals: 0.25” male fast-on

Environmental:

- Operating temperature range: -40°C to +75°C

- Storage temperature range: -40°C to +85°C

- Maximum Operating/Storage Relative Humidity: 95% non-condensing
