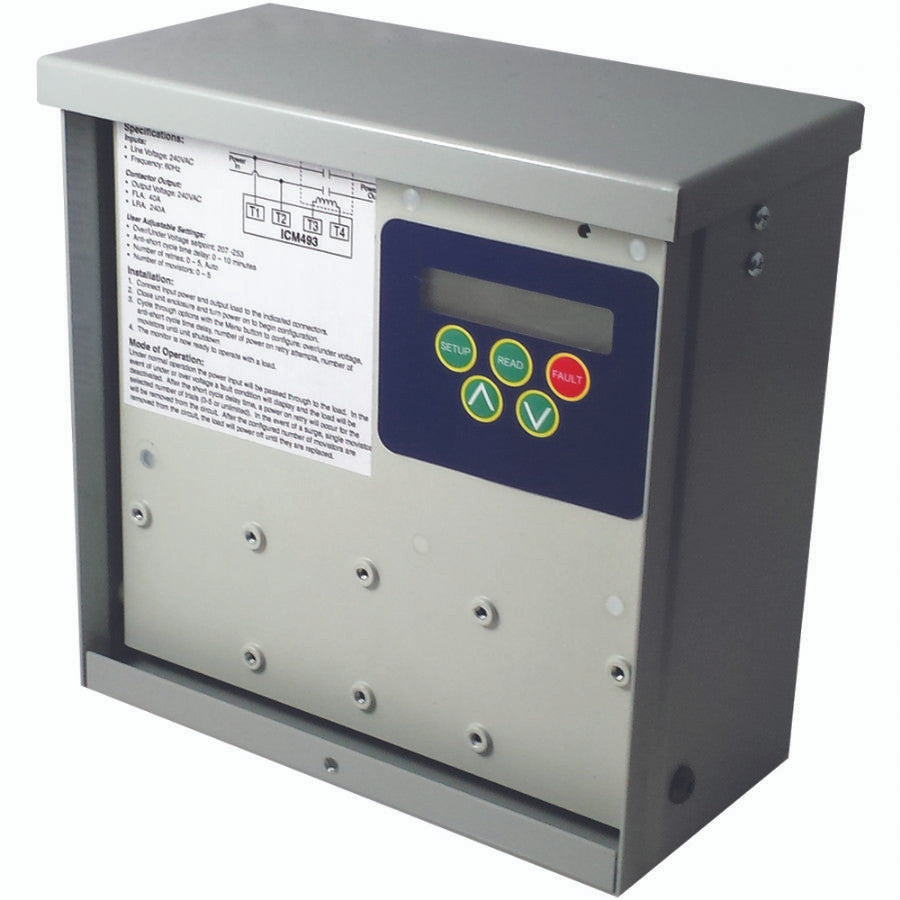

ICM493 Single Phase Line Monitor with Surge Protection

Description:

The ICM493 is an advanced, single-phase line voltage monitor with a bank of surge arresters for added protection against lightning strikes. Includes a built-in 40A contactor. Ideal for Mini-Splits or other valuable, single-phase equipment.

The ICM493 is an advanced, single-phase line voltage monitor with a bank of surge arresters for added protection against lightning strikes. Includes a built-in 40A contactor. Housed in a NEMA Rated 3R enclosure for outdoor installations. UL Recognized. Installs easily between the service disconnect and the condensing unit. Ideal for Mini-Splits or other valuable, single-phase equipment.

Specifications:

• Voltage Setpoint: 200-240 VAC
• Anti-Short Cycle Delay: 0.5-10 Minutes
• Number of Surge Arresters Required for Operation: 0-5
• Number of Retries: 1-5, Auto
  Inputs
• Line Voltage: 180-264 VAC
• Frequency: 50-60 Hz
• Accuracy: +/- 2%, User Calibration
  Output
• Type: Contactor; 2-Pole
• Contactor Ratings: 40A FLA, 240A LRA
  Mechanical
• NEMA Rated 3R Outdoor Enclosure
• Dimensions: 8”L x 8”W x 4”H

Weight/Dimensions:

• Weight: 7.55
• Height: 4
• Width: 8
• Length: 8
