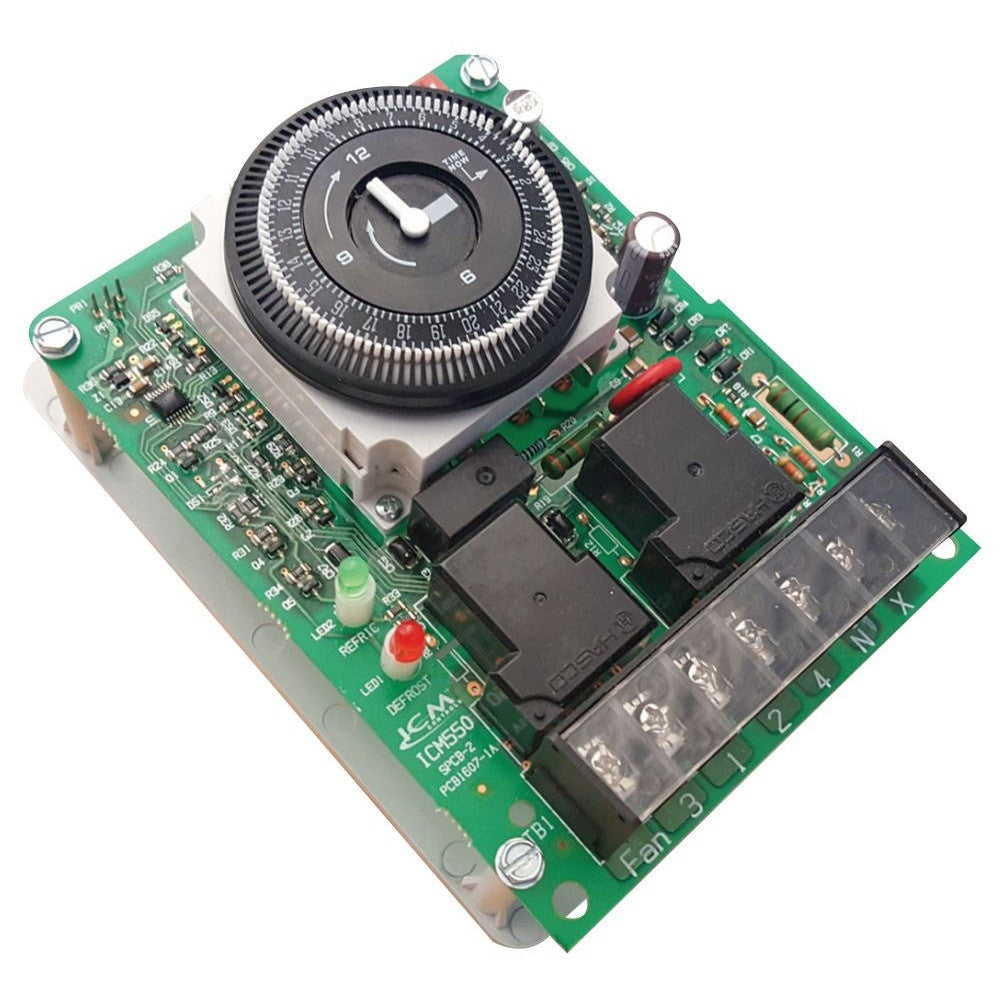

ICM550 Defrost Timer Auto Voltage

$84.93 USD

Sale Sold out

Adjustable 15 min to 23 hours and 45 min timing cycle
Timed or manual termination
User-friendly time clock
High power output relays
100% monitoring of inputs and outputs
Available with mounting bracket (Order: ICM550) or packaged in a NEMA Type 4X weatherproof enclosure (Order: ICM550-ENC)

NOTE: The ICM550 ships as a control board only solution. To order the unit with the weatherproof, plastic enclosure, Order ICM550-ENC.

ICM550: 4.50” x 3.12” x 6.00”

ICM550-ENC (w/enclosure): 8.75” x 6.50” x 2.75”

ELECTRICAL RATING
Voltage: 120-240VAC
Frequency: 60 Hz

OUTPUT
Type: Relay
Form: SPDT, SPST

Rating:

TIMING
Minimum cycle time: 15 min
Maximum cycle time: 23 hr 45 min
Terminate cycle: Cycle can be terminated by shorting “X to N”

STATUS LED
Cycle mode:(Red LED)
Normal mode: (Green LED)

Intermatic / Grasslin: 010-0011B, DT040, DT140, DTAV40, DTAV40M, DT-B, DTMV, DTSX

Paragon: 8041, 8045, 8047, 8141, 8143, 8145, 8245, 8247

Precision: 6041, 6045, 6047, 6141, 06145

Features
