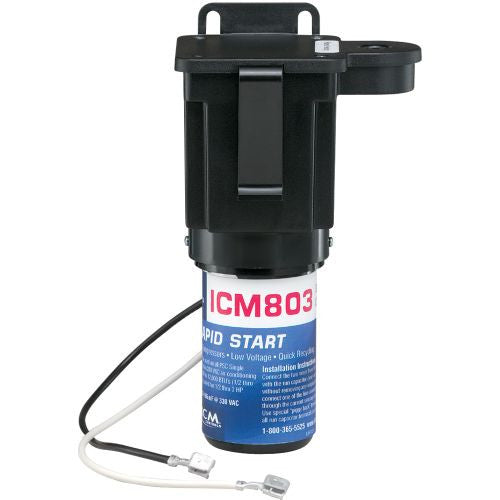

ICM803 Rapid Start Hard Start

Rapid Start® Hard Start with patented current sensing circuitry for precision boosts/drop out times; 2-wire installation; for 1/12 to 3 HP applications

Specifications:

Ideally suited for: 1/12 thru 3 HP applications

Capacitor: 88-106 Mfd., 330V

Operating temperature range: -40°C to +65°C

• Operates from 95-288 VAC
• Maximum input voltage: 502VAC
• Patented current sensing circuitry
• Self-adjusting to voltage fluctuation
• Easy to install, 2 wires, clip, or screw mounted
• For scroll or reciprocating compressors
• Solid-state circuitry
• Boost starting torque
• Disengages upon start
• Intrinsically safe, fuse protected (fuse not user replaceable)
• UL recognized
