US Motors 2246 Condenser Fan Motor 1/5 HP 208-230
US Motors 2246 Condenser Fan Motor 1/5 HP 208-230
No reviews
Regular price
$153.46 USD
Regular price
Sale price
$153.46 USD
Unit price
/
per

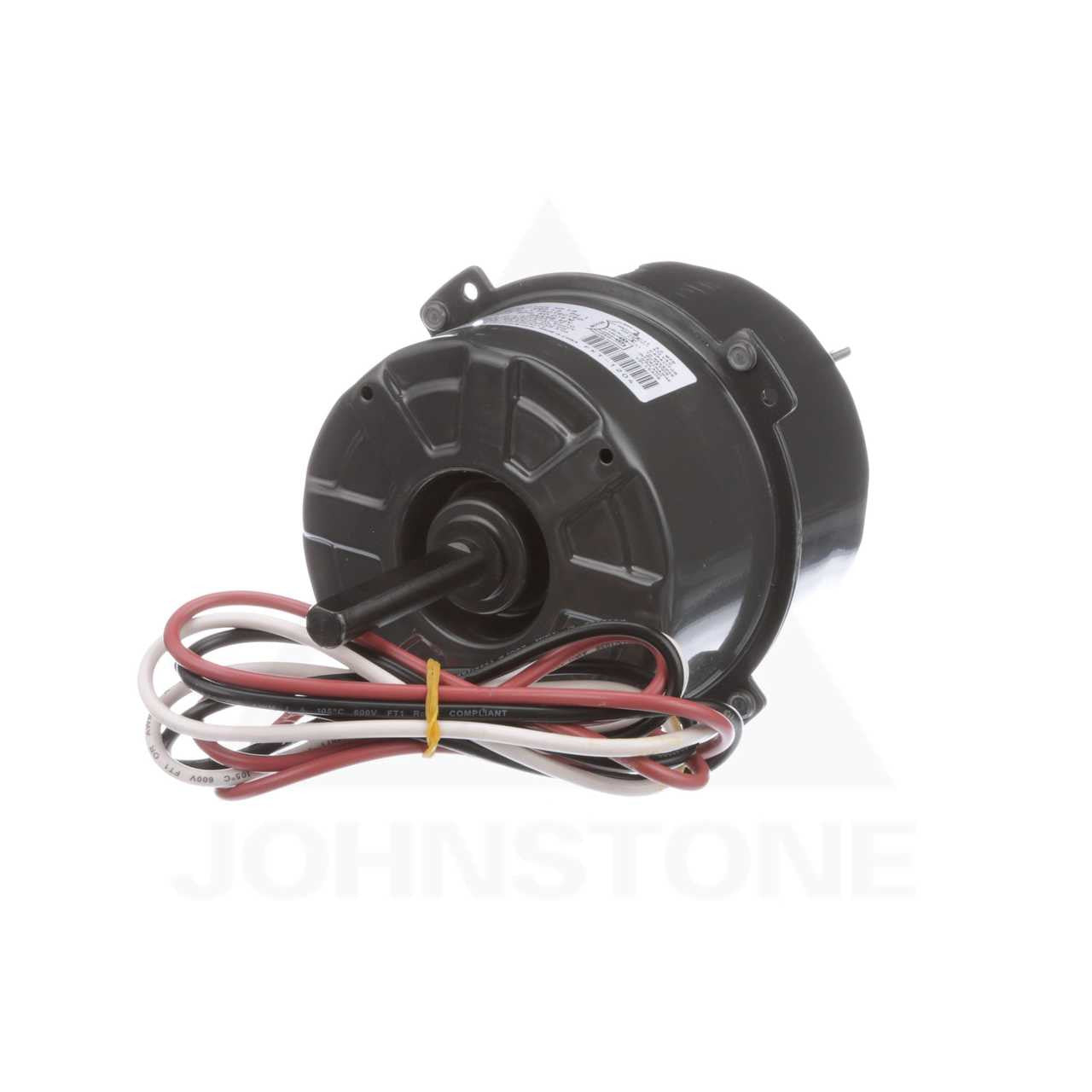

This is a 1/5 HP, 208-230v, 1075 RPM. The motor is 5" in diameter (Frame 42Y)- not 5 5/8" in diameter. The shaft extends 2" out of the motor. If the shaft is facing up (as seen in the picture), rotation is Counter Clock-Wise. The motor has a 3 wires.
Requires 5 x 370 capacitor not included.
Requires 5 x 370 capacitor not included.
- 1/5 HP
- 1075 RPM
- 208-230 Volt
- 1.6 Amp
- Auto Thermal Protector
- 42Y Frame
- Permanent Split Capacitor (PSC)
- Totally Enclosed Air Over (TEAO)
- Rotation: Reversible
- Motor Diameter: 5"
- Motor Length (less shaft): 4.1"
- Overall Length: 6.8"
- Shaft Dimensions: 1/2 x 2.7" flatted
- Requires 370 Volt/5.0 MFD Capacitor (not included)
- Replaces K48HXFPH-3956 5KCP29HCA432S G2246
