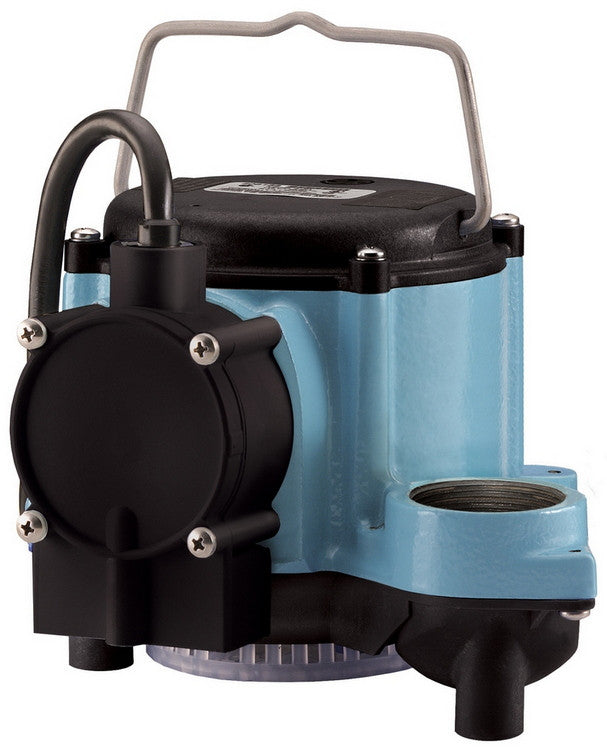

Little Giant 508157 8-CIA Submersible Sump Pump

Little Giant manual sump pumps are ideal for use in excavation, crawl space, basement, underground passageway, grain elevator, construction site, cooling tower, fire cleanup and other applications requiring high volume water dispersal.

Features:

• Screened intake.
• Polypropylene base.
• Polycarbonate cover.
• Cast iron housing with epoxy coating.
• 10 ft. power cord with 3-prong plug.
• Â Thermal overload protection.

Specifications:

AMPS	10
CORD LENGTH FEET	10'
DISCHARGE HEAD SIZE INCHES	1-1/2" FNPT
GALLONS PER MINUTE	54
HEIGHT INCHES	6
HERTZ	60
HORSE POWER	4/10
LENGTH INCHES	9-1/2
MANUFACTURERS PART NUMBER	508157
MAX. TEMPERATURE	140
OFF LEVEL	1" - 4"
ON LEVEL	7" - 10"
PHASE	1
SHAFT SEAL CONSTRUCTION	Carbon/Ceramic Face Seal
SUCTION/DRAW HEAD FEET	Screened Sump Type Pick Up
SWITCH TYPE	Integral Diaphragm
TYPE	Sump
VOLTAGE	115

CONSTRUCTION

Epoxy Coated Cast Iron Housing, Nylon Impeller

Flow at 5 FT Head:	54 GPM
Flow at 10 FT Head:	42 GPM
Flow at 15 FT Head:	26 GPM
