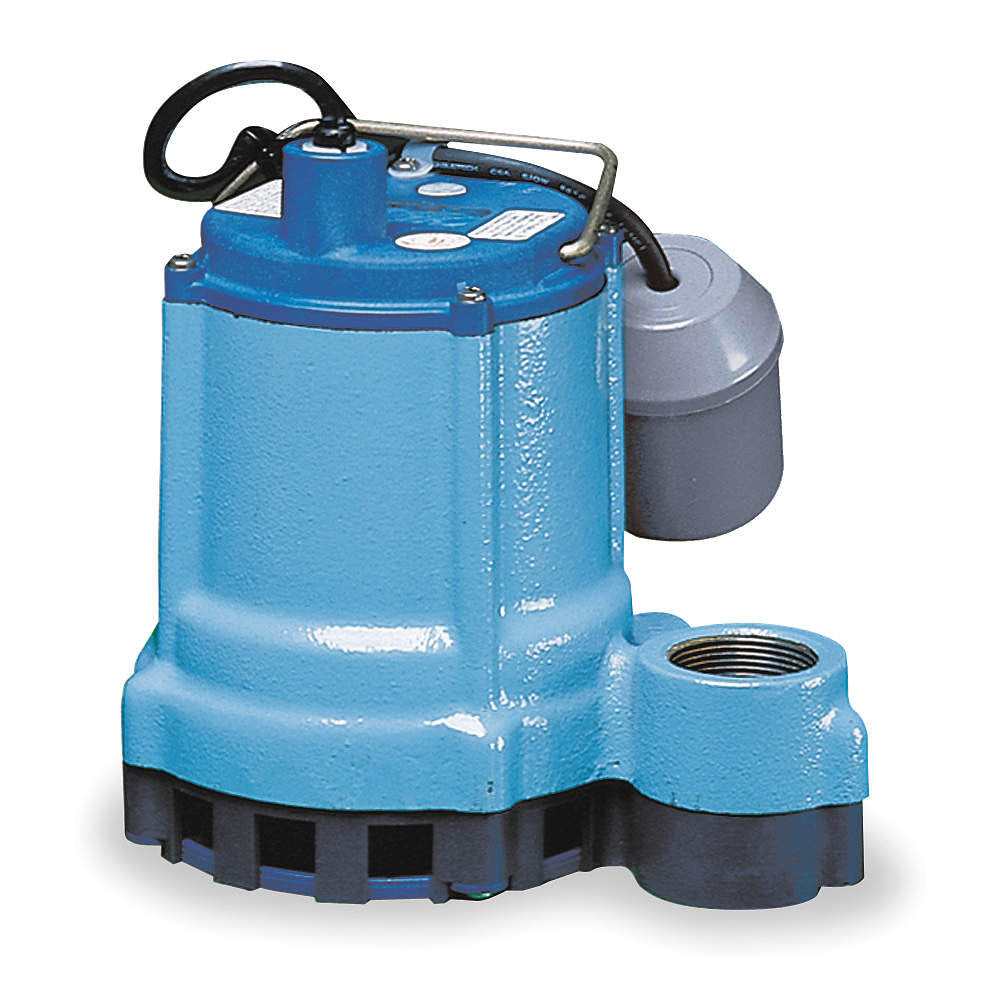

Little Giant 509209 9EN-CIA-RF Effluent Sump Pump 4/10HP 80G

Little Giant 509209 9EN-CIA-RF Effluent Sump Pump 4/10HP 80GPM

LITTLE GIANT Effluent Sump Pump
The 9EN Series submersible effluent pump is specifically engineered to handle the tough demanding tasks for wastewater and effluent waste transfer with high efficiency and long term dependability.

• 4/10HP PSC motor with thermal overload protection
• Little Giant 9EN series
• Low amp draw
• Cast iron pump housing with epoxy coating polypropylene base
• 1-1/2'' discharge

Ideal for use in residential, commercial, industrial, and agricultural applications with light to medium transfer demands such as dewatering, effluent waste, wastewater, and handling where such materials must be moved upward from a collection area to sewer lines, septic lines, or drainage areas.

• Handles liquids and 3/4" diameter soft solid waste materials.
• Minimum 5' vertical lift required on these Pumps

The Little Giant 509209 9EN-CIA-RF is an effluent pump. It is designed for continuous dewatering and water transfer applications. It is also recommended for effluent wastewater removal. This pump has a discharge size of 1-1/2" (38 mm) and it can handle up to 3/4" solids. It has a 4/10 hp permanent split capacitor (PSC) motor. This Little Giant 509209 9EN-CIA-RF Effluent Pump can pump 80 GPM at 5' head pressure and up to 25 GPM at 25' head pressure. It features a piggyback float switch. This pump comes with a 20' cord. The needed voltage to run this pump is 115V single phase. It has an epoxy-coated cast iron motor housing and a non-clog thermoplastic elastomer impeller. For more details, you can refer to the specification sheet. The Little Giant 509209 9EN-CIA-RF Effluent Pump is covered by a limited warranty for a period of 24 months. This product bears the CSA mark for meeting the standards. Little Giant has proven their excellence for over 70 years by producing reliable pump solutions, packaged system options, and accessories.

• Permanent Split Capacitor (PSC)
• Designed for continuous duty
• Energy-saving low amp draw
• Cooler running motor
• 1 1/2-inch discharge size
• Handles solids up to 3/4 inches
• Piggyback float switch
• 140 F (60 C) liquid temperature rating
• cCSAus listed
