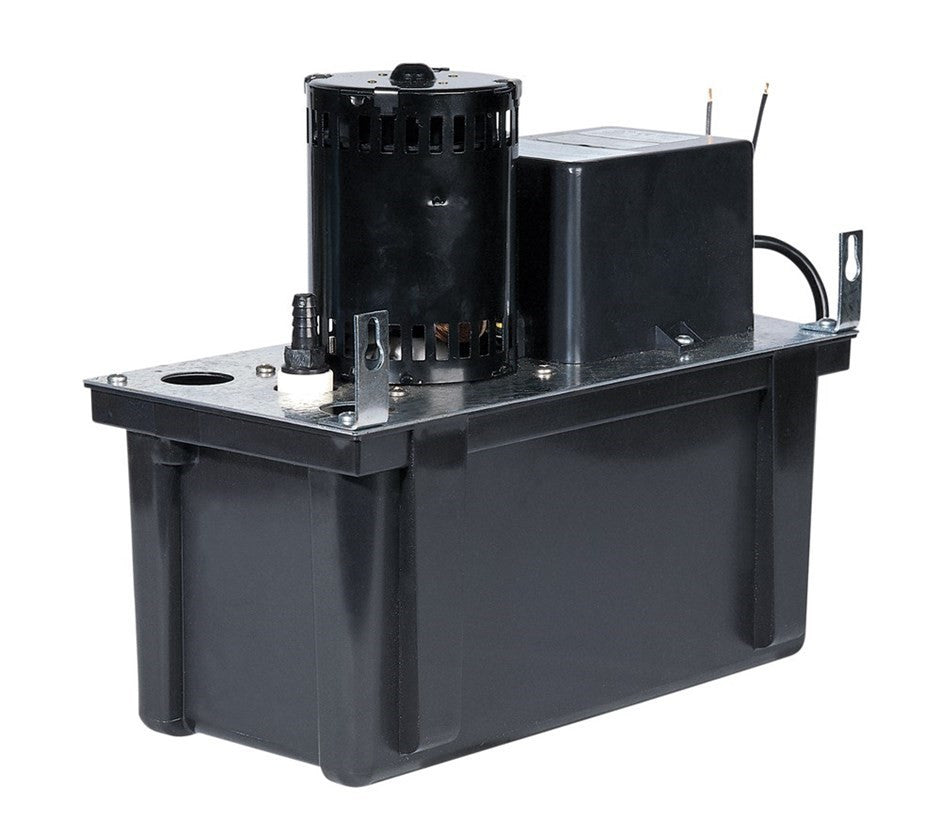

Little Giant 553206 VCL-24UL Large Tank Pump 1/18 HP 115V

Little Giant 553206 VCL-24UL Large Tank Pump 1/18 HP 115V 60HZ 270 GPH

Your Little Giant condensate pump is designed as an automatic condensate
removal pump for water dripping off an air conditioner evaporative coil. The
pump is controlled by a float/switch mechanism which turns the pump on when
approximately 3-1/2” of water collects in the tank, and automatically switches off
when the tank drains to approximately 2”. VCL-24ULS Series pump is rated for high-efficiency gas furnace applications that produce an acidic condensate.

Specifications:

• Motor - 1/18 HP
• 1 gallon tank capacity
• Intermittent Liquid Temp. up to - 120°F
• Flow - 270 GPH @ 1' of Head
• 1/4" FNPT or 3/8" O.D. barbed discharge adapter
• Housing - ABS
• Cover - Galvanized steel
• Motor Shaft - Stainless steel
• Cord Length - 6 ft
• Weight - 8.2 lbs
• Height - 10.5"
• Width - 6"
• Length - 12"
• Volute - ABS
• Impeller - Polypropylene
• Electrical - 115 V, 60 Hz, 2.5 Amps, 148 Watts, thermally protected motor

Features:

• Vertical type pump unit
• Leakproof, rustproof, ABS tank
• ABS switch cover and pump stand
• 1/4" FNPT or 3/8" O.D. barbed discharge adapter
• 24' shut-off head
• UL/CSA listed
• No safety switch
• Thermal overload protected
