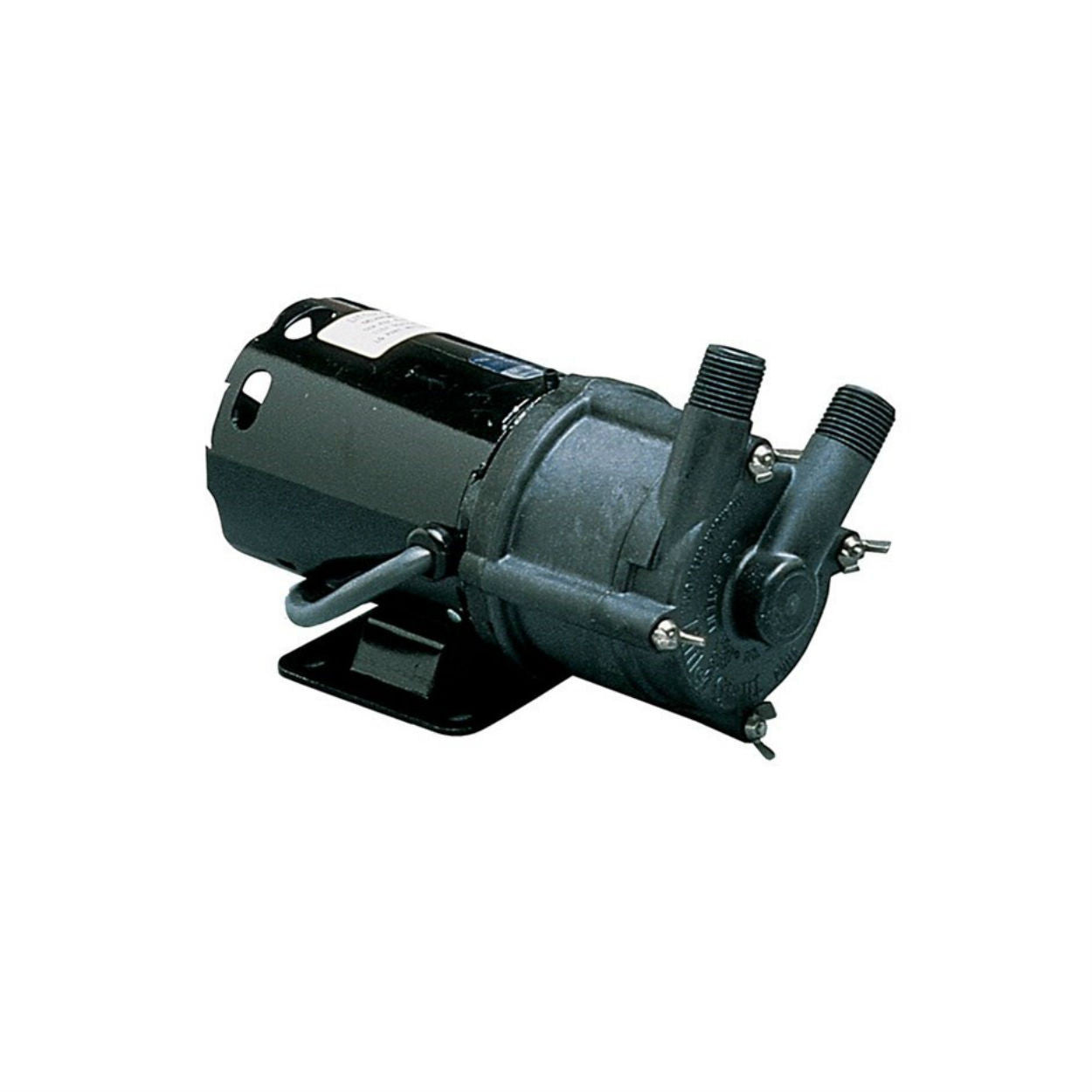

Little Giant 578603 3-MD-MT-HC Magnetic Drive Pump

The Little Giant MD-HC series features leakproof, seal-less magnetic drives and are designed for in-line, non- submersible use. Volute, magnet housing and impeller are glass-filled Ryton for excellent chemical resistance. Ceramic shaft and thrust washers are 99.5% pure alumina for excellent wear and trouble-free service. Pumping heads are easily rotated, cleaned or serviced with no special tools required. Spindle shaft is supported at both ends to prevent impeller damage during start-up and stop of pump.

Features:

• Thermally Protected, Open, Fan-Cooled Motor
• Sleeve Bearings
• 6' Power Cord with 3-Prong Plug
• Specific Gravity to 1.1
• Fluid Temperature to 200 Degrees F.
• Ambient Air Temperature to 77 Degrees F.
• Run-dry capability up to 8 hours

Specifications:

Construction:

Volute - Glass-filled Ryton
Housing - Glass-filled Ryton
Impeller - Glass-filled Ryton w/Carbon Bushing
Shaft - Ceramic
Thrust Washers - Ceramic
O-Ring- Viton
