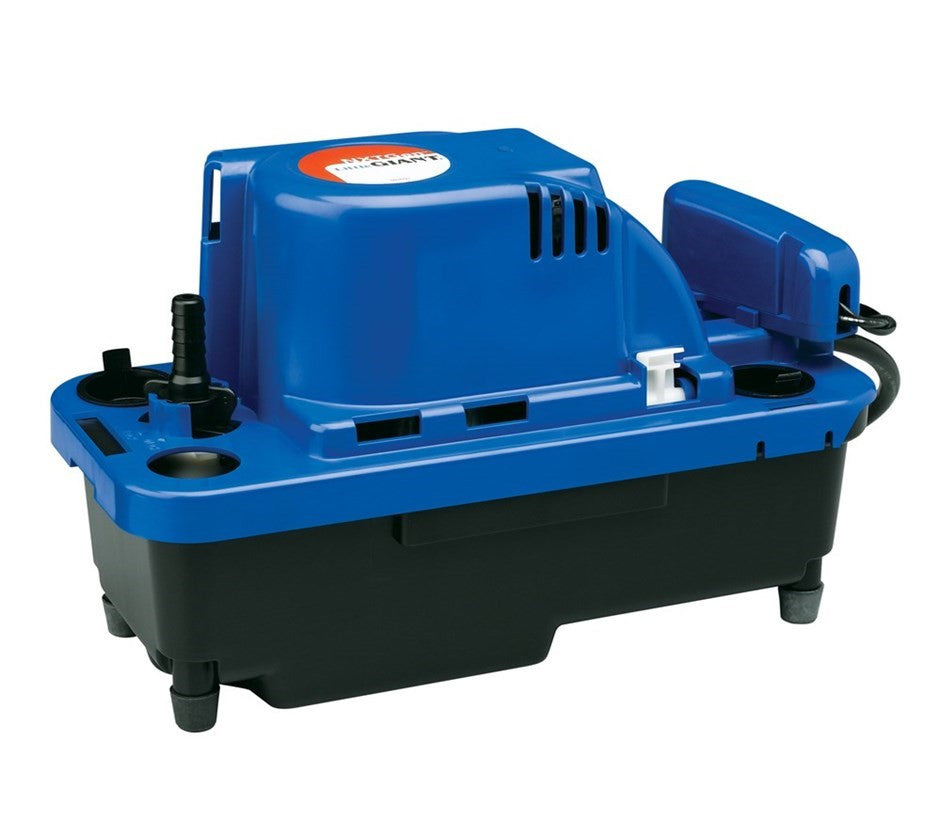

Little Giant VCMX-20ULST Condensate Pump 20' w/Tubing

High Capacity VCMX-20ULST Condensate Pump With Safety Switch and 6’ Tubing

Applications

Designed for automatic collection and removal of condensate

from air conditioning, refrigeration and dehumidification

equipment when gravity drainage is not possible or practical.

Also suitable for high efficiency oil and gas-fired condensing

furnace and condensing boiler equipment.

Features

• External test/run lever

• Slim footprint

• Vertical centrifugal pump design

• Automatic start and stop operation

• Galvanized steel “quick install” wall mount bracket

• Some models equipped with external, float activated switch

for automatic high level water detection

(safety overflow switch)

• For models with safety overflow switch: dual function NO

and NC operation (set to NO from factory for equipment

shut down connection)

• Models equipped with safety overflow switch include

two 5” switch lead wires

• 3/8” O.D. barbed ¼-turn quick release, locking discharge

adapter with built-in check valve

• Rubber feet for vibration/noise dampening

• “Anti-sweat” tank sleeve included on select models and

available separately for all others

• 3 - 1-1/8” diameter inlet openings, two fitted with

removable cap plug (3 + 1 inlet openings for models

without safety overflow switch)

• Recessed tank sump

• Oil resistant tank and check valve

• Thermally protected, fan cooled motor

• Maximum water temperature: 140 Degrees F

• 6', 3-conductor cable with grounded 3-prong plug

• Some models include 20’ x 3/8” I.D. vinyl

discharge tubing

Construction

• Housing/tank cover — ABS

• Motor cover — ABS

• Volute — ABS

• Tank — Polypropylene

• Impeller — Polypropylene

• Switch float — ABS

• Check valve — Acetal

NXTGen™ with tubing
