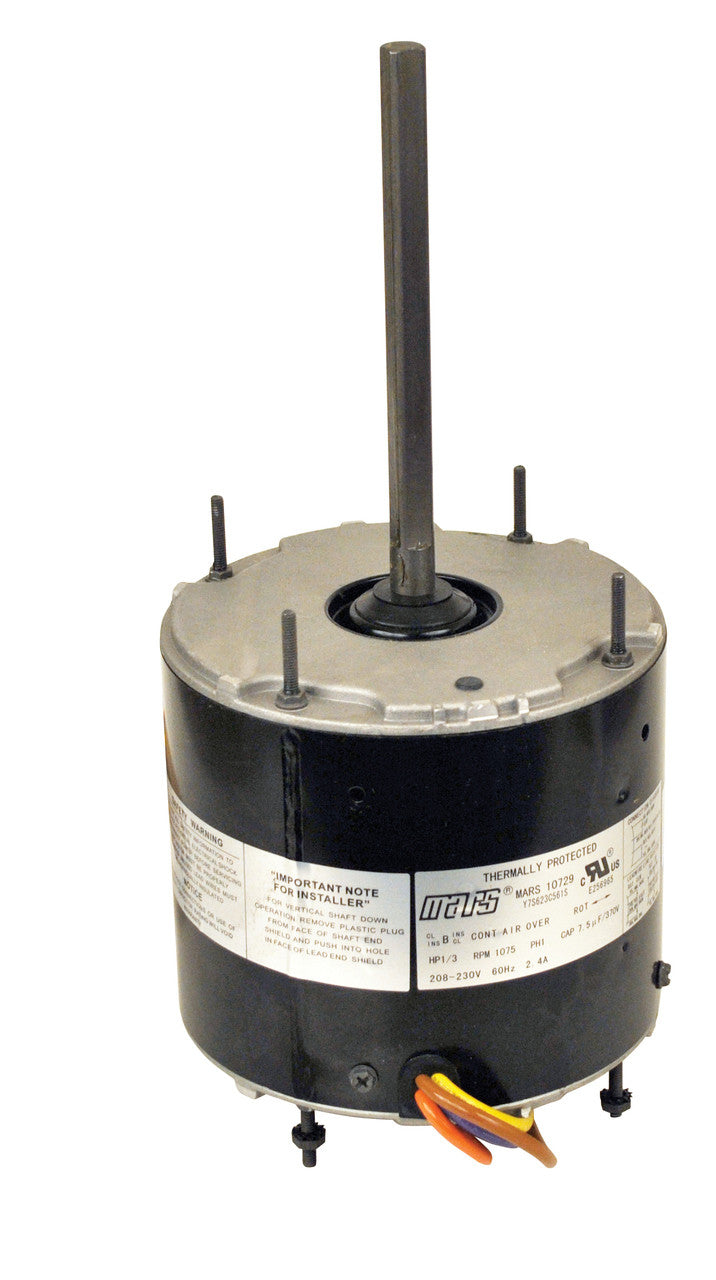

MARS 10728 Condenser Fan Motor 1/4 HP 1075 RPM 208-230V

MARS 10728 Condenser Fan Motor 1/4 HP 1075 RPM 208-230V

1/4 HP 208-230/1/60 (1075 RPM) Mars Reversible Condenser Fan Motor 22728. MARS up/down outdoor condenser fan motors are designed for either vertical shaft-up or shaft-down applications. Shell and end shields are enclosed for weather protection. A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat
pump applications.

Features:

• Reversible rotation
• Thru bolt or band mounting
• Water slinger on shaft
• Serrated end caps on vertical shaftupmodels
• Full six inch shaft length
• Up/down design
• All angle sleeve or ball bearings
• Double full flatted shaft

Specifications:

• 5-1/2" dia.
• Class B insulation
• Single phase, 60 Hertz
• Automatic thermal overloadprotected
• Fan duty, continuous, air over
• 26 inch leads

Cross-brand Interchanges:

MARS	GE	AO Smith	Emerson	Fasco	Marathon	Wagner	Packard	YORK/ Source-1/ Coleman	Rheem/ Ruud/ Protech	Carrier/ Totaline/ RCD	Nordyne/ Partner's Choice
22728	3728	FSE1026S	1860	D909	X412	WG840728	43728	S1-FHM3728	51-24437-28	P257-8728	01-0161

Also replaces: Mars 03728, Mars 10728

Motor Power	1/4 HP
RPM	1075
Speeds	1-Speed
Rotation	Reversible
Phase	1
Voltage	208/230V
Hz	60
Frame	48
Run Capacitor	5/370
Motor Type	PSC
Shaft Diameter	1/2"
Shaft Length (In.)	6-1/2
Enclosure	Drip Proof
