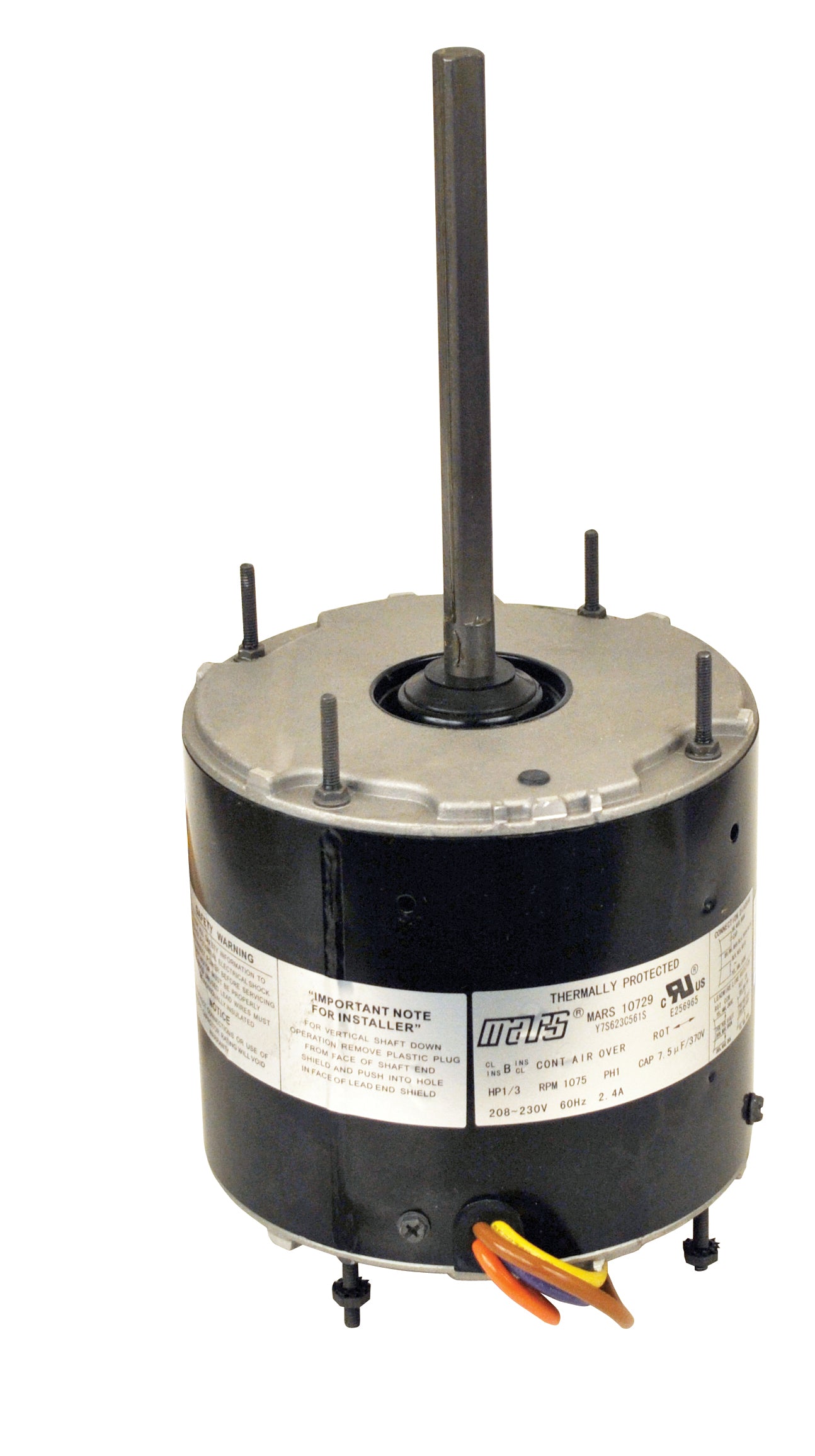

MARS 10729 Condenser Fan Motor 1/3 HP 1075 RPM 208-230V

Mars 10729 - 1/3 HP 208-230/1/60 (1075 RPM) Condenser Fan Motor.

MARS up/down outdoor condenser fan motors are designed for either vertical shaft-up or shaft-down applications. Shell and end shields are enclosed for weather protection. A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat
pump applications.

Features:

• Reversible rotation
• Thru bolt or band mounting
• Water slinger on shaft
• Serrated end caps on vertical shaftupmodels
• Full six inch shaft length
• Up/down design
• All angle sleeve or ball bearings
• Double full flatted shaft

Specifications:

• 5-1/2" Diameter
• Class B insulation
• Single phase, 60 Hertz
• Automatic thermal overloadprotected
• Fan duty, continuous, air over
• 26 inch leads
• 7.5mfd capacitor required

10729 1861 WG840729 D908 43733 37
3729 3733 10729 10734 1861 1877 235245
3733 D749 D7748 Y4631 43733
10729, W51-13CJA1-02,
43733
D749
D7748
Y4631
3733
37
3729
3733
10729
10734
235245
1861
1877
D749
D7748
