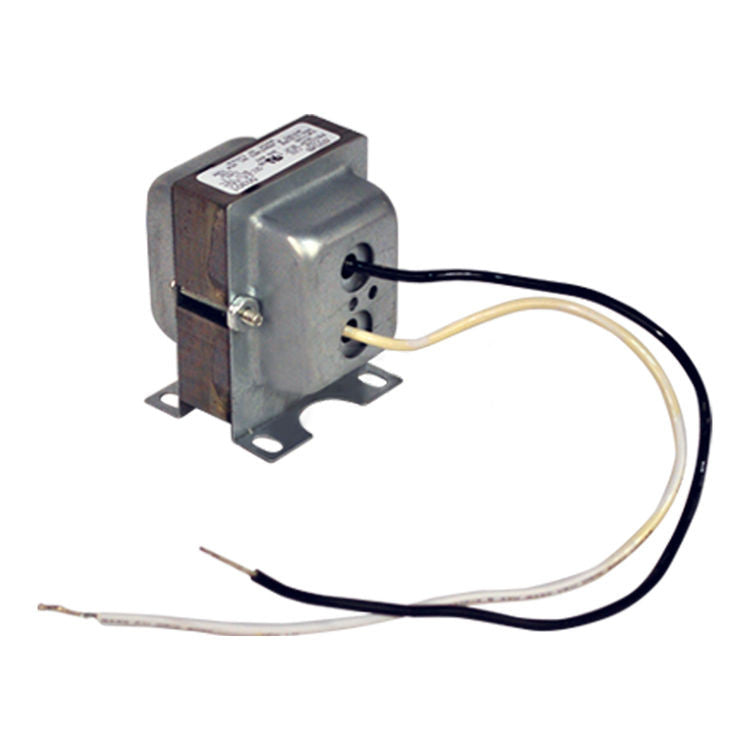

MARS 50314 Transformer 50 VA 120/208/240V To 24V 3-WAY

MARS 50314 Transformer 50 VA 120/208/240V To 24V 3-WAY

$78.16 USD
$78.16 USD
Sale Sold out

MARS 50314 Transformer 50 VA 120/208/240V To 24V 3-WAY

MARS end bell transformers provide enclosures for the primary and secondary windings.

Features:

  • Multi-Mount End Bell Typ
  • UL class 2 recognized
  • Low heat rise
  • Primary color coded leads
  • Secondary color coded leads, or screw terminals
  • Replaces 50212, 50216
Type
Power
Class
Class 2
Input Voltage
120/208/240
Connection Type
Wire Leads
Voltage Output
24
Width Inches
2.756
VA Rating
50
Hz
50/60
Construction
Closed
Mounting Type
H Bracket
Circuit Breaker
No
Height Inches
2.937
Standards
UL5085

Features

Specifications

Documents

View full details
