Mastercool 99772-A Digital Manifold Gauge Set

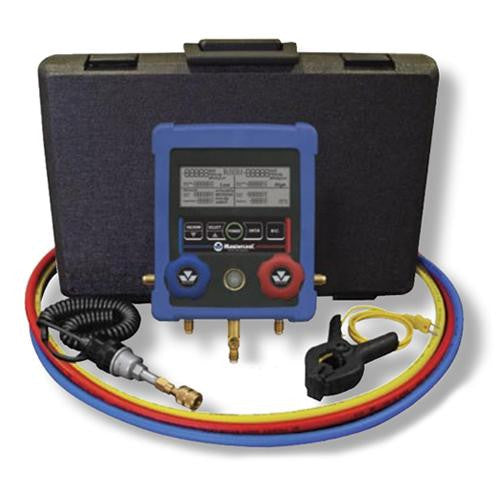

The Mastercool 99772-A Complete Kit in a blow molded case includes: manifold with a set of 3-72” hoses, vacuum sensor with cable and clamp-on thermocouple.

Mastercool introduces the most advanced and user friendly Digital Manifold on the market today! This manifold offers a large easy to read LCD that displays Pressures, Saturated Temperatures, Actual temperatures, Superheat and Subcooling temperatures for over 60 refrigerants. When used with the Clamp-on Thermocouple connector it will display the actual temperature and automatically calculate the superheat or subcool temperature. When the vacuum sensor cable is attached to the manifold it will display deep vacuum. To insure lasting performance and durability the manifold case is constructed of ABS material and protected by a rugged rubber boot.
The technician now has a fully functional manifold with the intelligence to quickly access and deliver the accurate information needed to do the job right!

Includes 61 Refrigerants: R11, R12, R13, R21, R22, R23, R32, R113, R114, R115, R116, R123, R124, R125, R134, R134a, R141B, R142B, R143, R143A, R152A, R176, R218, R290, R401A, R401B, R401C, R402A, R402B, R403A, R403B, R404A, R405A, R406A, R407A, R407B, R407C, R407D, R408A, R409A, R410A, R410B, R411A, R411B, R412A, R413A, R414A, R414B, R501, R502, R503, R504, R507, R508B, R509A, R600, R600A, R601, R601A, R717, R744

SPECIFICATIONS:

• Pressure Display: PSI, Bar, MPa, Kg/cm2
• Temperature Display: F or C
• Deep Vacuum Display: Micron, mBar, KPa, mmHg
• Refrigerant Temperature Range: -40 to 200 F (-4 to 93 C)
• Operating Temperature: 32 to 122 F (0 to 45 C)
• Connections: 1/4” M-Flare
• Power: 9V DC battery with optional AC/DC adapter
• Battery Life: 350 hours (pressure & temperature mode) continuous use 16 hours (vacuum mode) continuous use
• Auto-Off: 15 min. with disabling capability

Features:

• Heavy-Duty hook folds back into unit for compact storage
• Multi-Refrigerants (over 60)
• Protective rubber boot
• Clamp-on thermocouple connector gives actual temperature reading and automatically calculates subcool temperature
• Battery level indicator
• Aluminum block manifold with double O-Ring free floating piston valves
• Rugged ABS case
• Keypad control
• Thermocouple design sensor for accurate vacuum reading
• Additional Clamp-on thermocouple connector port gives actual temperature reading and automatically calculates superheat temperature
• Large, easy to read pressures and saturated temperatures
