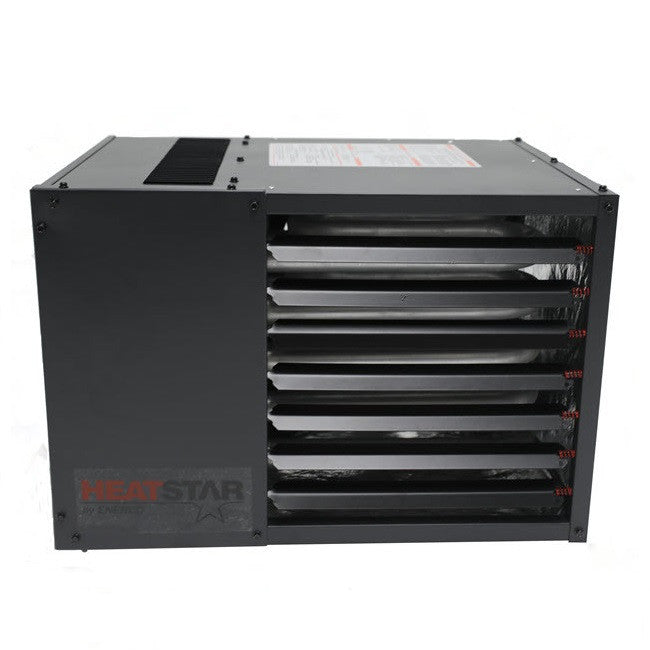

Mr Heater HeatStar 80K Natural Gas or Propane Garage Work Shop Unit Heater, Gray
Mr Heater HeatStar 80K Natural Gas or Propane Garage Work Shop Unit Heater, Gray
If you are looking to turn your garage or barn into a work space you can use all year-round, you will have to find a safe quiet and reliable heat source. This 50,000 BTU Natural Gas Unit heater is the way to go. It uses a built-in electric high velocity fan to pull cool air into the rear of the heater, across a heat exchanger, then forcing warm air into the surrounding areas. These heaters only require 115v AC power and can be vented vertically or horizontally - please check local codes and restrictions. With a mounting clearance of only 1 inch, the supplied brackets, external access to power, and thermostat connections - installation is a cinch. With the Durable Spark ignition and robust factory standard self-diagnostic control module, we can offer a 3 year factory warranty on all parts and burners and a 10 year warranty on any defects in the heat exchanger. This heater offers the operating versatility and safety that you have come to expect from Heatstar.
Features:
- Forced air heat
- 50,000 BTU per hour
- Heats up to 1,250 sq ft
- For use with natural gas
- Includes 2 angle brackets for ceiling mount
- Low profile design - Can be installed in low ceiling
- Minimum 8 foot clearance from floor to base of heater required
- Electronic spark ignition features self-diagnostic control module
- 1/2 in. gas connection
- Category 1 vertical, category 3 horizontal venting
- 3 year limited warranty
- Thermostat sold separately
Perfect for:
- Residential Garages
- Metal Buildings
- Storage Buildings
- Warehouses
- Agricultural Buildings
**For elevations above 2000 feet ratings should be reduced at the rate of 4% for each 1000 feet above sea level or as specified by local authority having jurisdiction.
| BTU | 50,000 |
|---|---|
| Weight | 66.1 |
| Heating Area (Sq Ft) | 1667 |
| Electrical Rating | 110 vac |
| Gas Inlet Connection | 1/2in |
| Gas Inlet Pressure Min | 3.5in WC |
| Gas Inlet Pressure Max | 14in WC |
| Mounting Height Range | 8ft - 10ft |
| Clearance to Combustibles: Horizontal | Above 1in; Behind 18in; Sides 1in |
| Venting: Length Min/Max | 5ft - 25ft |
| Venting: Exhaust | 4in Diameter |
| Venting Direction | Horizontal or Vertical |
| Heat Exchanger | Aluminized Steel Tubing |
| Thermostat Optional | Yes |
| Fuel Type | Natural Gas or Propane |
| Ignition | Electronic |
| Item Length (in) | 15 |
| Item Width (in) | 28.75 |
| Item Height (in) | 26.25 |
| Item Weight (lb) | 65.59 |
| Warranty | 3 Year Limited |
| Model | HSU50NG |
