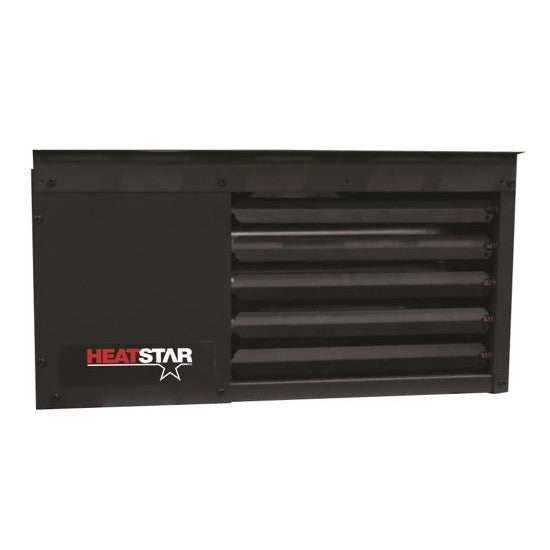

Mr Heater HSU50NG HeatStar 50K Natural Gas Unit Heater W/LP Kit, Gray
Mr Heater HSU50NG HeatStar 50K Natural Gas Unit Heater W/LP Kit, Gray
If you are looking to turn your garage or barn into a work space you can use all year-round, you will have to find a safe quiet and reliable heat source. This 50,000 BTU Natural Gas Unit heater is the way to go. It uses a built-in electric high velocity fan to pull cool air into the rear of the heater, across a heat exchanger, then forcing warm air into the surrounding areas. These heaters only require 115v AC power and can be vented vertically or horizontally - please check local codes and restrictions. With a mounting clearance of only 1 inch, the supplied brackets, external access to power, and thermostat connections - installation is a cinch. With the Durable Spark ignition and robust factory standard self-diagnostic control module, we can offer a 3 year factory warranty on all parts and burners and a 10 year warranty on any defects in the heat exchanger. This heater offers the operating versatility and safety that you have come to expect from Heatstar.
Features:
- Forced air heat
- 50,000 BTU per hour
- Heats up to 1,250 sq ft
- For use with natural gas
- Includes 2 angle brackets for ceiling mount
- Low profile design - Can be installed in low ceiling
- Minimum 8 foot clearance from floor to base of heater required
- Electronic spark ignition features self-diagnostic control module
- 1/2 in. gas connection
- Category 1 vertical, category 3 horizontal venting
- 3 year limited warranty
- Thermostat sold separately
Perfect for:
- Residential Garages
- Metal Buildings
- Storage Buildings
- Warehouses
- Agricultural Buildings
**For elevations above 2000 feet ratings should be reduced at the rate of 4% for each 1000 feet above sea level or as specified by local authority having jurisdiction.
| BTU | 50,000 |
|---|---|
| Weight | 66.1 |
| Heating Area (Sq Ft) | 1667 |
| Electrical Rating | 110 vac |
| Gas Inlet Connection | 1/2in |
| Gas Inlet Pressure Min | 3.5in WC |
| Gas Inlet Pressure Max | 14in WC |
| Mounting Height Range | 8ft - 10ft |
| Clearance to Combustibles: Horizontal | Above 1in; Behind 18in; Sides 1in |
| Venting: Length Min/Max | 5ft - 25ft |
| Venting: Exhaust | 4in Diameter |
| Venting Direction | Horizontal or Vertical |
| Heat Exchanger | Aluminized Steel Tubing |
| Thermostat Optional | Yes |
| Fuel Type | Natural Gas or Propane |
| Ignition | Electronic |
| Item Length (in) | 15 |
| Item Width (in) | 28.75 |
| Item Height (in) | 26.25 |
| Item Weight (lb) | 65.59 |
| Warranty | 3 Year Limited |
| Model | HSU50NG |
