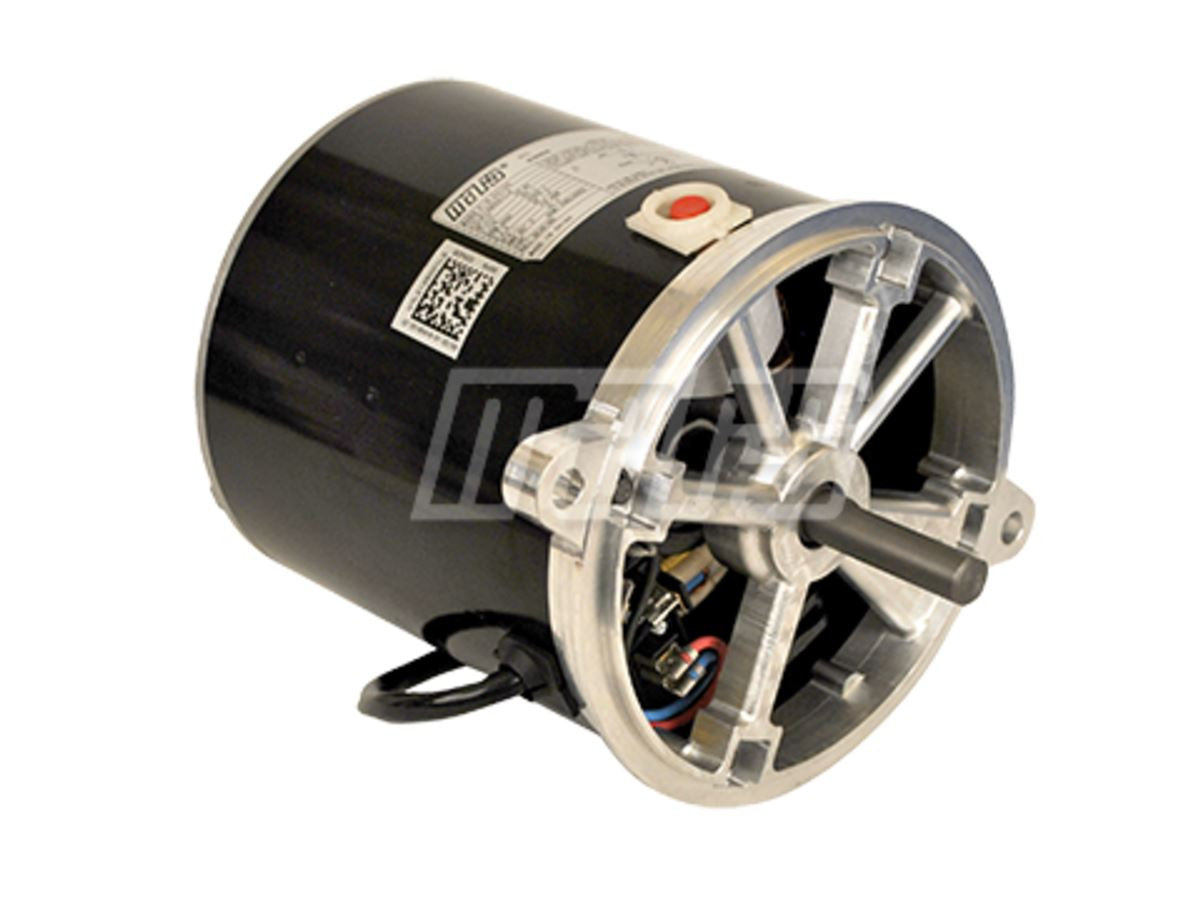

Oil Burner Motor EL2002 3083 O100 1/7HP 115V 3450RPM

MARS 30100 Oil Burner Motor 1/7HP 115V 3450RPM 2.4A

1/7HP 115V 3450RPM OIL BURN

Ball Bearing

MARS Oil Burner Motors are replacement motors for residential and commercial oil burners, hot water pressure/steam cleaners and other applications where 48M or 48N flange mounting is required.

Features:

• All angle

• Split Phase and PSC

• Semi or totally enclosed

• Two bolt direct mounting for 48M and 48N

Specifications:

• Class “B” insulation

• Single phase, 60 Hz

• Continuous duty

• Manual reset overload protection

• Auto reset protection for PSC

• cULus

Motor Type Split Phase

Enclosure Semi Enclosed

H.P. (Max.) 1/7

Voltage 115

Speeds 1

Hz 60

Rotation REV

RPM Range 3450

NEMA Frame Size 48M

Phase Single

Standards cULus

FLA 2.4

Mount Two bolt direct mounting

Bearing Ball

Shaft Length Inches 1.75

Shaft Dia Inches 1/2

Thermal Protection Manual Reset

Ambient Deg C 40

Ins. Class Class B

Capacitor Included No
